Vertical lathe AC series
CNCfor aeronautics

vertical lathe
vertical lathe
vertical lathe
vertical lathe
vertical lathe
vertical lathe
vertical lathe
vertical lathe
vertical lathe
vertical lathe
Add to favorites
Compare this product


Characteristics

Spindle orientation
vertical
Control type
CNC
Other characteristics
for aeronautics
Spindle speed

60 rpm, 75 rpm, 100 rpm, 120 rpm, 150 rpm
(376.991 rad.min-1, 471.239 rad.min-1, 628.319 rad.min-1, 753.982 rad.min-1, 942.478 rad.min-1)

Diameter

Min.: 3,600 mm
(141.73 in)

Max.: 6,500 mm
(255.91 in)

Description

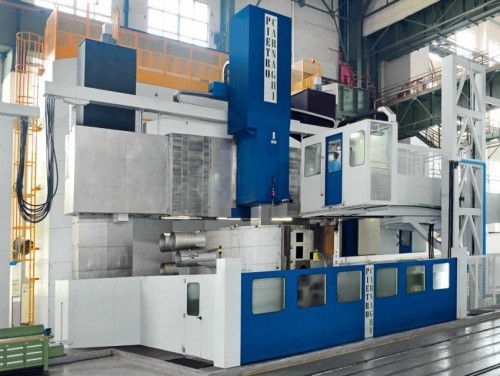

The Pietro Carnaghi vertical turning centre model AC is designed and built in a compact form, with an extremely rigid thermo symmetrical structure, having two columns mounted to the table base. All these elements are assembled together in order to constitute a tough structure ensuring maximum stability and rigidity. The movable crossrail is designed and sized to withstand severe cutting conditions. On the front part two horizontal sliding guides support the vertical ram saddle in its horizontal movement (through hydrostatic pockets).The distance between the superior and the inferior guide way is dimensioned to ensure the maximum cutting performances. The different available configurations (different turning height, ram sections, machining accessories, measuring probes accessories) make the models AC to be the more flexible and useful to any need: starting from the most sophisticated precision in finishing operations (parts for aeronautics), to the most severe cutting conditions (forging rings). Table - Pallet diameter - mm - 3000 / 3200 - 3500 - 3500 / 4000 - 4500 - 5000 / 5700 - 6000 Max. allowable weight - t - 40 - 50 - 80 - 80 - 120 - (170) - 200 - (250) Turning power - kw - 60 - 100 - (120) - (180) - (300) Turning height: fixed crossrail - mm - 750 - 1000 - 1200 Turning height: movable crossrail - mm - 2000 ÷ 3500 - 2000 ÷ 4500 - 2500 ÷ 5000 - 2500 ÷ 6000 Ram section - mm - 250 x 250 - (300 x 300) - 300 x 300 (350 x 350) - 300 x 300 - (350 x 350) - (400 x 400) Ram stroke Z axis - mm - 1250 - (1500) - (1800) - (2000) - (2500) - (3000) Milling power - kw - 37 / 40 / 60 Max. RPM - RPM - 3000 - (6000) Rapid feeds X-Z-axes - mm/min - 15000
