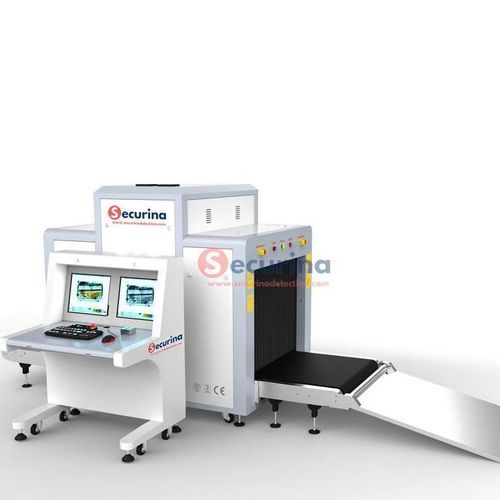

Baggage scanner SA100100

inspectionfor airportX-ray

Securina SA100100 X-Ray baggage Scanner is an advanced security system, capable of scanning and detecting items of the most intricate nature, stored or hidden in luggage and even smaller, pallet size loads. Baggage scanners are commonplace in airports and administration buildings like immigration and revenue authorities.Securina SA100100 X-ray security luggage scanner is a X-ray security screening system with tunnel dimensions of 1000 mm width by 1000 mm height. It permits the inspection of bulky as well as small items without any loss of X-ray image quality.Securina SA100100 X-Ray Security Scanners - Conveyors: Our high capacity X-Ray scanning units are designed for the processing of higher quantities of mail items or bigger packages in Goods In and mailroom settings. On reception areas and at access points they are utilised to scan deliveries and luggage items quickly to reduce delaying the movement of people.Securina SA100100 Applications:Commercial buildings; Factories (to find needle in clothing, shoes, bags); Courthouses; Embassies; Government buildings; Military installations; Prisons; Mail Rooms; Hotels; Schools; Convention centers; Security checkpoints.Application field: Train Stations; Metro Station; Jail House; Embassy; Border check points; Entertainment venues; Tourist attractions; Office buildings; Shopping malls; Factories, etc.*Suitable for security inspection of briefcase, hand luggage, postal parcels and other small packages.General specifications:Tunnel size1000mm*1000mm (W*H)Conveyor speed0.20m/sConveyor height338.5mmMaximum load200kgs (evenly distributed)Wire resolution40AWG (dia 0.0787mm wire)Spatial resolutionLevel: dia1.0mm copper wire, Vertical: dia1.0mm copper wirePenetration (steel)30mm guarantee, 32mm typicalPenetration resolution32AWG (0.202mm)Display17 inch (19 inch optional) color LCD monitor, high resolution: 1280*1024X Ray generator anode voltage140-160KV adjustableCooling cycleOil Cooling /100%X ray dose per inspection<1.0 μSvX ray generator1Beam directionfrom top to bottomImage processBlack and white / color, anti-color, high energy penetration, super enhancement, histogram equalization, forced scanning, magnifying glass, image pull back / front pull, image storageMaterial classificationOrganic: orange; Inorganic: blue; Mixed and light metal: greenSection and magnificationAny area selection, 1 -64 times magnification, support continuous amplificationImage pull backunlimited imagesStorage capacityCan store at least 100000 pcs imageX ray leakage<0.5 μSv /h (at a distance of 5cm from external housing), meet all international and domestic health and safety standardsFilm safetyguarantee ASA/ISO1600 FilmSoftware systemF1, F2, F3 programmable key, high density alarm, TIP; date/time display, baggage Count, User management, System work timing, Radiation timing, self-inspection while power on, save and search image, automatically maintenance and diagnosis system, image recognition training.Optional functionVideo surveillance system, LED prompt screen, bi-direction scan, voltage stabilizer, UPS back upPhysical size3638.5*1295*1916mm (L*W*H)Weight1370kgsOperation temperature/Humidity0ºC~+40ºC; 5%~95% (non-condensing)Storage Temperature/Humidity-40ºC~+60ºC; 5%~95% (non-condensing)Operation power220VAC (+/-10%) 50+/-3HZPower consumption1.0KvANoiseLess than 55dbOperation training program for end usersFree of factory training for engineer from agents to end userProvide on-site training when customer requiresIf quality problems happen in guarantee period, company will maintain for freeOne year free spare parts and lifetime technical supportAfter-sales service isn't restricted by time and technical personnel will solve problems immediately after receiving feedbackTechnical Specifications / Features:Product Item: SA100100Tunnel size: 1000(W)*1000(L)mmMonitors: Two unitsTube Voltage: 140-160KVWarranty: 1 yearCategory: X-ray Security Scanner
