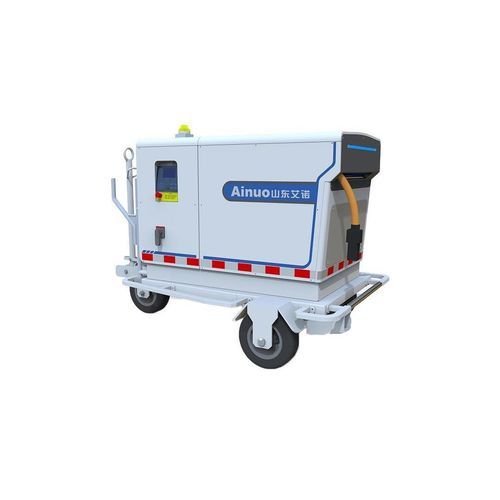

Electric GPU AN17PC(F)

fixedmobiletrailer-mounted

Product overview
The AN17PC(F) Combined Drum Ground Power Unit is a 400 Hz all-in-one GPU integrating a solid-state power conversion unit with a motorized cable reel. Designed for plug-and-play airport operation, it supports suspension under jet bridges or installation on ground bases for flexible deployment at gates, remote stands and maintenance areas.

Product features

• Quick on-site installation without complex procedures
• Compact combined structure with reduced footprint and weight
• High load capacity suitable for next-generation all-electric aircraft (e.g., B787, A380)
• Intelligent reel control: variable rotation speed with automatic winding/unwinding at travel limits
• Optimized mechanical layout for accessibility and straightforward maintenance
• Cable voltage-drop compensation to maintain power quality at aircraft terminals
• Interlocking power-supply function ensuring safe aircraft energization
• Strong overload capability: withstands 4× rated load for 1 s
• Superior waveform quality, harmonic content <1.5%
• 12-pulse rectifier design: input current distortion <5%, input power factor >0.96

Product application
Intended for areas with concentrated aircraft operations: gate/near-gate positions, remote stands, maintenance hangars and airport aprons.

Technical specifications

• Model: AN17PC(F)
• Type: All-in-one combined drum GPU integrating solid-state power unit with motorized reel
• Frequency: 400 Hz
• Installation: Suspended under jet bridges or mounted on ground bases (flexible application)
• Drum: Intelligent speed control with automatic winding/unwinding at travel end
• Power quality: Harmonic content <1.5%
• Input stage: 12-pulse rectifier; input current distortion <5%; input power factor >0.96
• Overload capability: 4× rated overload for 1 s
• Functions: Cable voltage-drop compensation; interlocking power-supply for aircraft safety
• Mechanical: Combined structure for small footprint and reduced weight; optimized layout for easy maintenance
• Application suitability: Designed for jet-bridge power supply and heavy/all-electric aircraft (e.g., B787, A380)
