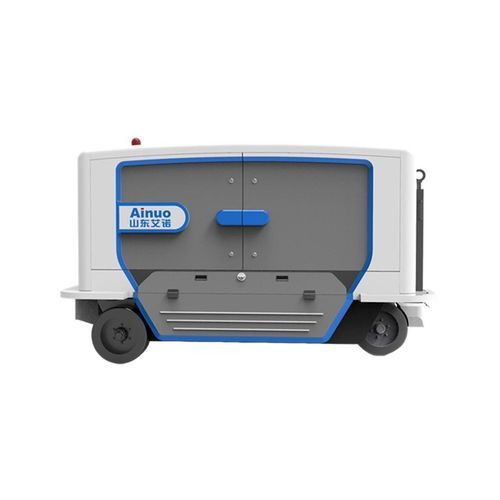

Battery-powered GPU AN17ES(F)

fixedmobiletrailer-mounted

Product overview
AN17ES(F) Series ground solid-state power supply is an energy-storage ground power unit (GPU) designed for aircraft with 400Hz electrical systems. The unit integrates lithium iron phosphate traction batteries, a battery management system (BMS) and solid-state inverter technology to provide reliable on‑apron electrical support. Dual-mode operation allows supply from the traction battery or from standard 380V/50Hz mains power.

Key benefits

• Reduces Scope 1 emissions on the apron and improves local air quality.
• Enables low-noise and night-time operations in noise‑sensitive areas and supports charging from off‑peak grid or renewable energy sources to optimize operating costs.

Product features

• Automatic fire extinguishing system and continuous battery status monitoring (BMS).
• Built-in automatic air conditioning for cooling and heating in high and low ambient temperatures.
• Dual-mode power supply: traction battery and optional 380V/50Hz mains input.
• 8.0‑inch full‑color LCD for clear system status and configuration.
• Equipment enclosure, internal cabling and connectors made from flame‑retardant materials.
• Grounding detection and fault alarm functions for operator safety.
• Standard LiFePO4 (lithium iron phosphate) battery boxes with IP67 protection for commercial vehicle use.
• Customizable output cable length from 10 to 40 m for operational flexibility.
• Superior waveform quality with harmonic content <1.5%.
• 4× overload capacity, suitable for next‑generation all‑electric aircraft (examples: B787, A380).
• Interlocking power supply to ensure safe connection and power delivery to aircraft.
• Cable voltage drop compensation to maintain power quality at the aircraft connection point.

Product application
Intended for concentrated aircraft areas: near‑gate stands, remote stands, maintenance hangars and airport aprons. Suitable for conventional and next‑generation all‑electric aircraft operations.

Technical specifications

• Model: AN17ES(F)
• Power source: traction battery with optional 380V/50Hz mains input
• Output compatibility: 400Hz aircraft power systems
• Display: 8.0‑inch full‑color LCD
• Battery enclosure: LiFePO4 battery boxes, IP67 protection
• Environmental control: built‑in automatic air conditioning (cooling and heating)
• Safety: automatic fire extinguishing system; grounding detection; fault alarm; flame‑retardant materials
• Protection/overload: 4× overload capacity
• Power quality: harmonic content <1.5%; cable voltage drop compensation
• Output cable: customizable length 10–40 m
