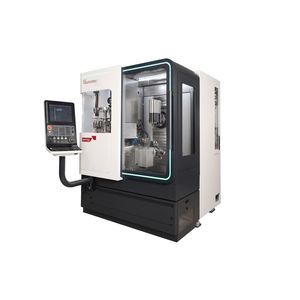

5-axis machining center LX 021

horizontalCNCfor aeronautics

A comprehensive integrated solution from one source – from the machining system via the specially developed CAM system through to the integration of process monitoring systems Machining of all types of blade with one jig thanks to an innovative and flexible fixture concept The optimisation of unit costs for ready-to-install blades thanks to an integral machining concept for pre and postprocessing in a clamping position Turbine blade machining center The LX series was specifically designed for the high-precision, efficient five-axis machining of turbine blades. This ultra-modern machining platform is the result of decades of experience in the development of machine tools, CAM systems and special tools combined with our in-house expertise in the prototype and series production of turbine blades. Maintenance friendly any component requiring periodic service are easy accessible replacement items e.g. filters, wipers etc are easy to access machine components require service are simply to access and repair safe working areas for maintenance personal e.g. platforms and attach point are provided condition based machine monitoring to predict future component failure Control and system capability Contour fidelity during high-speed machining through look-ahead feature and dynamic preselection Drive parameter adjustment depending on the machining Control behavior and NC path planning are developed and optimized in great detail to achieve the perfect combination of geometrical accuracy, surface quality and of course productivity.
