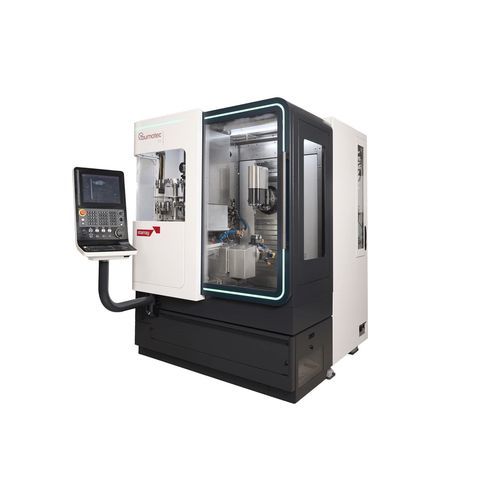

5-axis machining center BUMOTEC 171

verticalfor aeronauticsdental

Tagline
High-precision 5-axis machining center for compact, efficient production

Overview
The Bumotec 171 delivers focused high-precision machining in a compact footprint. Designed to combine essential functions for modern production, it enables complete part manufacturing in a single machining cycle while simplifying operation and maintenance. Ideal for manufacturers seeking high geometric accuracy and repeatability without unnecessary complexity.

Applications

• Luxury goods: Precision machining of components in gold, platinum, titanium, stainless steel and other precious materials.
• Medtech: Production of orthopedic implants, surgical instruments and dental parts with tight tolerances.
• Micromechanics & Aerospace: High-accuracy parts for micromechanics and aerospace applications where geometric fidelity is critical.

Machine design / Axis configuration
The Bumotec 171 is offered in a focused configuration with simultaneous 5-axis capability. One or two optional vises allow secure clamping for precise sixth-side machining and optimized cycle flow.

Features / At a glance

• Compact footprint: approx. 3 m²
• Simultaneous 5-axis machining
• Bar capacity up to Ø32 mm
• Tool magazine up to 60 tools
• Complete part production in a single cycle
• Fast changeovers and easy access to spindle
• Intuitive Windows touchscreen operator interface
• Reduced energy consumption and simplified maintenance
• Preventive and predictive maintenance capabilities

All-in-One Machining
The Bumotec 171 focuses on essential capabilities to deliver precision without excess. Configurable for operator efficiency and repeatable quality, it supports demanding production runs with ergonomic access and simplified cleaning.

• Simultaneous 5-axis version
• Bar capacity up to Ø32 mm
• One or two optional secondary-operation vises
• High repeatability and geometric accuracy
• Ergonomic working area and simplified cleaning

Optional integrations include bar feeders, chip management units, a 20-position palletizer and high-pressure systems to meet specific production requirements.

Configurator
Product referenced as "Bumotec 171" in the configurator; single-series focused configuration for straightforward selection.

Specifications

• Footprint: approx. 3 m²
• Axes: simultaneous 5-axis machining
• Bar capacity: up to Ø32 mm
• Tool magazine capacity: up to 60 tools
• Production flow: complete production in a single machining cycle
• Workpiece clamping: one or two optional vises for sixth-side machining
• Operator interface: Intuitive Windows touchscreen
• Maintenance: preventive and predictive maintenance capability
• Optional equipment: bar-feeders, chip management units, 20-position palletizer, high-pressure systems
• Design focus: compact footprint, high repeatability, high geometric accuracy, ergonomic access and easy maintenance
