Self-propelled ambulift CM-AMV-01

for people with reduced mobilityfor airport

Overview
Aircraft Ambulift truck designed for airport operations to enable safe, dignified boarding and disembarkation of passengers with reduced mobility and stretcher transport. Suitable for airlines, ground handlers and medical teams requiring an integrated lift and van body solution.

Key features

• Wheelchair and stretcher lift: hydraulic lift with adjustable height to align with aircraft doors.
• Adjustable platform height: 2400–5850 mm to serve different aircraft types.
• Van body configured for medical or passenger support with access to the rear platform.
• Safety systems: platform safety rails, non-slip surface and mechanical/hydraulic interlocks (manual override available).
• Load capacities designed for ground operations: rear platform 500 KG, van body 1500 KG.

Technical specifications

• Model: CM-AMV-01
• Brand: CHEERSMETAL
• Overall Dimension (L x W x H): 8400 x 2300 x 3800 mm
• Van Body Dimension (L x W x H): 6500 x 2300 x 2150 mm
• Platform Height Range: 2400 - 5850 mm
• Max. load capacity of Van body: 1500 KG
• Load capacity of rear Platform: 500 KG
• Curb Weight: 7840 KG

Applications

• Disabled passenger boarding and disembarkation
• Stretcher transport and medical evacuation support
• Airline and airport ground handling operations
• Mobile medical support at remote stands

Product images

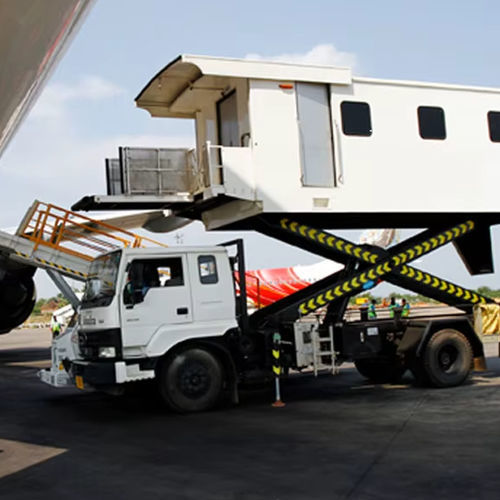

Product images shown for illustration of the Aircraft Ambulift / aviation medical lift vehicle.
