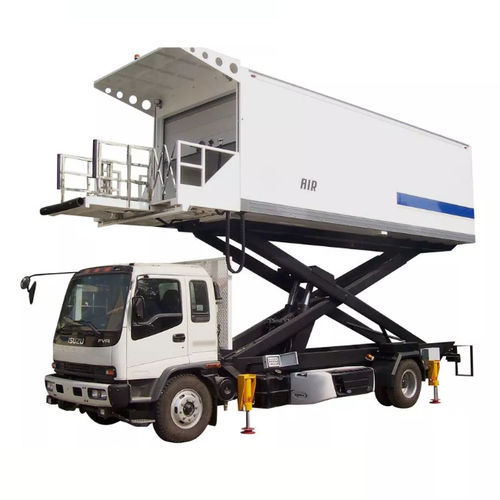

Airport catering truck CM-CV-1

with refrigeration unit

Introduction
Aviation catering trucks provide controlled transport and handling of meals, beverages and on-board supplies between airport kitchens and aircraft. They are designed to operate at apron level and to align with aircraft door heights for safe, hygienic and efficient service operations.

Key features

• Catering Compartments: Separate compartments for meals, beverages, snacks and serviceware to facilitate loading, segregation and inventory control.
• Refrigeration and Heating: Design options include refrigerated and heated compartments to maintain required food temperatures during transfer.
• Hygienic Storage: Materials and layout ensure easy cleaning and compliance with aviation catering hygiene standards.

Product Description
Name: Aircraft Ground Support Equipment, Airline Catering Truck, aircraft catering truck
Model: CM-CV-1
Chassis model: Isuzu QL1180XQFRY
Vehicle form factor (L x W x H) (mm): 10350×2500×3800
Platform front floor height (mm): 2700～6200
Rear floor of compartment height (mm): 1550～6200
Van size (L x W x H) (mm): 7500×2500×2400
Maximum load (kg): 4500
Scale platform before and after telescopic (mm): 0～600
Platform lateral movement (mm): 0～700
Fixed platform rated load (kg): 1550
Active platform rated load (kg): 550
Vehicle preparation weight (kg): 14000
Channel outer circle diameter (mm): 20000
Minimum ground clearance (mm): 240

Suitable Aircraft Models
The CMTLS65 configuration is intended for airport use with Isuzu FVR series heavy chassis. The elevation range (2700–6200 mm) makes it compatible with door heights of a wide range of aircraft including A300, A310, A318, A319, A320, A321, A330, A340, B737, B747, B757, B767, B777.

Packing
Packed in a frame container; freight cost may be higher than standard shipping container rates due to dimensions and handling.

Detailed Images
Multiple product images and detailed photos are provided showing exterior, interior compartments and packaging.

Characteristics / spécifications techniques

• Model: CM-CV-1
• Brand: CHEERSMETAL
• Chassis model: Isuzu QL1180XQFRY
• Vehicle dimensions (L×W×H) (mm): 10350×2500×3800
• Van dimensions (L×W×H) (mm): 7500×2500×2400
• Platform front floor height (mm): 2700～6200
• Rear compartment floor height (mm): 1550～6200
• Maximum load (kg): 4500
• Fixed platform rated load (kg): 1550
• Active platform rated load (kg): 550
• Platform telescopic range (mm): 0～600
• Platform lateral movement (mm): 0～700
• Vehicle preparation weight (kg): 14000
• Channel outer circle diameter (mm): 20000
• Minimum ground clearance (mm): 240
