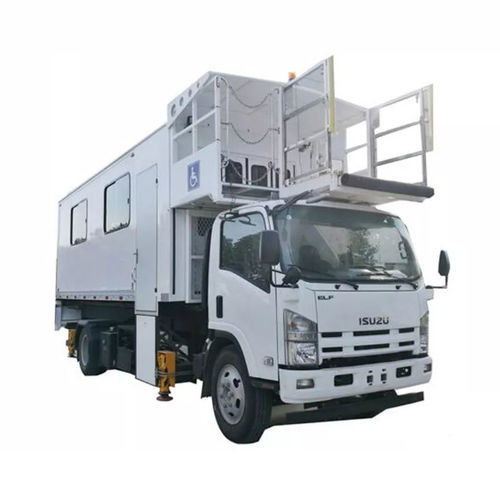

Self-propelled ambulift CMBV-51

for people with reduced mobilityfor airport

Product Brief
Aircraft ambulift CM-AMV-01, a 4-wheel airport boarding vehicle designed to enable boarding and disembarkation of passengers with reduced mobility by aligning a platform with aircraft door levels.

Introduction
An aircraft disabled boarding truck (ambulift) is a specialized apron vehicle used at airports to provide safe and accessible transfer between ground level and aircraft doors. It is intended to facilitate efficient boarding and disembarkation for passengers with limited mobility.

Key features

• Wheelchair lift: hydraulic or mechanical lift mechanism to raise passengers to aircraft door level.
• Adjustable height: platform height range 2400–5850 mm to match different aircraft types.
• Load capacities: maximum van body load 1500 kg; rear platform load 500 kg.
• Four-wheel chassis: designed for manoeuvrability and stability on the apron.
• Safety and comfort: platform guards and secure access to support passengers with reduced mobility.

Specification (from product page)
AVIATION MEDICAL TRUCK
Model: CM-AMV-01
Overall Dimension (LxWxH): 8400x2300x3800mm
Van Body Dimension (LxWxH): 6500x2300x2150mm
Platform Height Range: 2400-5850mm
Max. load capacity of Van body: 1500KG
Load capacity of rear Platform: 500KG
Curb Weight: 7840KG

Product images
Product images include the main product photos and interior/exterior illustrations supplied on the product page.

Note
Product is described as an aircraft disabled boarding truck / ambulift / wheelchair lift designed for boarding and disembarkation of passengers with reduced mobility.
