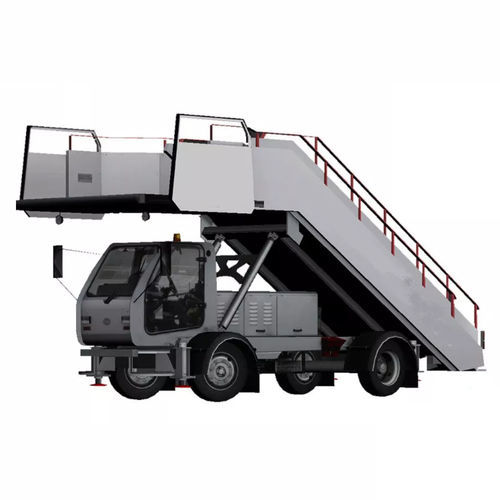

Access stairs CM-AGE-KT

boardingmobileself-propelled

Introduction
Airport passenger stairs provide a flexible ground-boarding solution for aircraft parked on remote stands or where aerobridges are not available. They enable efficient boarding and disembarkation while allowing precise positioning at varying door heights.

Key features

• Adjustable height: Height range 2400–5800 mm to suit multiple aircraft types.
• Safe access: Sturdy steps, handrails and non-slip surfaces for passenger safety.
• Operator station options: Versions with a top platform or an operator cabin for movement and positioning control.
• Vehicle base: ISUZU chassis and engine for reliable mobility and serviceability.

Product Description
Name: Airport stairs, aircraft boarding stairs, airplane stair truck
Model: CM-AGE-KT
Brand: CHEERSMETAL
Chassis type: ISUZU
Engine type: ISUZU
Overall dimension (L×W×H): 7990×2400×3691 mm
Wheelbase: 3815 mm
Curb weight: 8400 kg
Ground clearance (min): 2400 mm
Ground clearance (max): 5800 mm
Platform size (L×W): 3350×2200 mm
Minimal curve radius: 15 m
Allowed maximum running speed: 40 km/h
Maximum load-bearing (persons): 70
Front axle load: 2850 kg
Rear axle load: 4600 kg

Applicable aircraft models
The adjustable height range (2400–5800 mm) makes this stair suitable for narrow- and wide-body types such as A310, A320, A330, A340, B737, B747, B757, B767, B777 and similar models.

Product packaging
Packed in a frame container; freight cost is higher compared with standard shipping containers due to dimensions and handling requirements.

Samples, Warranty & Terms
Samples: Not provided.
Standard warranty: 1 year.
Delivery time: Typically 3–4 months depending on order quantity and production schedule.
Payment terms: 30% T/T in advance, balance before shipment.

Caractéristiques / spécifications techniques

• Model: CM-AGE-KT
• Brand: CHEERSMETAL
• Chassis type: ISUZU
• Engine type: ISUZU
• Overall dimension (L×W×H): 7990×2400×3691 mm
• Wheelbase: 3815 mm
• Curb weight: 8400 kg
• Ground clearance (min): 2400 mm
• Ground clearance (max): 5800 mm
• Platform size (L×W): 3350×2200 mm
• Minimal curve radius: 15 m
• Allowed maximum running speed: 40 km/h
• Maximum load-bearing (persons): 70
• Front axle load: 2850 kg
• Rear axle load: 4600 kg
