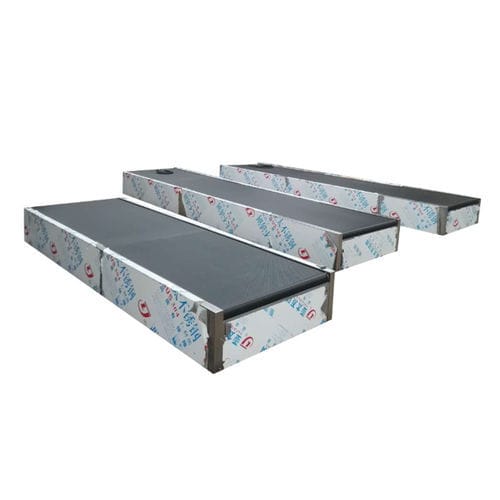

Belt conveyor CSDbaggagecheck-incurved
Add to favorites
Compare this product
Characteristics
- Type
- belt
- Applications
- baggage, check-in
- Form
- straight, curved
- Domain
- for airport
- Speed
0.35 m/s, 0.4 m/s
(1.15 ft/s, 1.31 ft/s)- Length
1,200 mm, 1,400 mm, 5,000 mm
(47.24 in, 55.12 in, 196.85 in)- Effective width
550 mm, 650 mm, 700 mm
(22 in, 26 in, 28 in)- Maximum load
Max.: 75 kg
(165.347 lb)Min.: 2 kg
(4.409 lb)
Description
Product Brief
This CSD conveyor is designed for airport baggage handling. It integrates PVC belt technology and curved modules to transfer checked luggage reliably between check-in, sorting and loading areas while accommodating a wide range of baggage sizes.
Product Description
The modular system comprises straight and curved conveyor sections with reinforced frames and PVC belts. Curved sections enable smooth direction changes and continuous flow through terminal layouts. The conveyor supports baggage weights from 2 kg to 75 kg, with selectable module lengths (1200 mm, 1400 mm, 5000 mm) and operating speeds of 0.35 or 0.4 m/s. Drive options (0.37 kW / 0.55 kW) deliver stable performance with noise ≤65 dB(A). The design prioritizes long service cycles and simplified maintenance for airport ground-handling operations.
Specification
Baggage Size: Min.: 250mm × 200mm × 100mm
Max.: 1000mm × 600mm × 400mm
Baggage weight: 2 kg – 75 kg
Length series: 1200 mm, 1400 mm, 5000 mm
Speed series: 0.35 m/s, 0.4 m/s
Starts/Stops frequency: 360 times
Total motor power: 0.37 kW / 0.55 kW
Noise: ≤65 dB(A)
Conveyor belt material: PVC
Width between sideguards: 550 mm, 650 mm, 700 mm
Pictures
Multiple images available showing straight and curved modules, complete system layouts and installation examples.
Why choose us
Technical specifications
This CSD conveyor is designed for airport baggage handling. It integrates PVC belt technology and curved modules to transfer checked luggage reliably between check-in, sorting and loading areas while accommodating a wide range of baggage sizes.
Product Description
The modular system comprises straight and curved conveyor sections with reinforced frames and PVC belts. Curved sections enable smooth direction changes and continuous flow through terminal layouts. The conveyor supports baggage weights from 2 kg to 75 kg, with selectable module lengths (1200 mm, 1400 mm, 5000 mm) and operating speeds of 0.35 or 0.4 m/s. Drive options (0.37 kW / 0.55 kW) deliver stable performance with noise ≤65 dB(A). The design prioritizes long service cycles and simplified maintenance for airport ground-handling operations.
Specification
Baggage Size: Min.: 250mm × 200mm × 100mm
Max.: 1000mm × 600mm × 400mm
Baggage weight: 2 kg – 75 kg
Length series: 1200 mm, 1400 mm, 5000 mm
Speed series: 0.35 m/s, 0.4 m/s
Starts/Stops frequency: 360 times
Total motor power: 0.37 kW / 0.55 kW
Noise: ≤65 dB(A)
Conveyor belt material: PVC
Width between sideguards: 550 mm, 650 mm, 700 mm
Pictures
Multiple images available showing straight and curved modules, complete system layouts and installation examples.
Why choose us
- Manufacturer experienced in airport baggage systems.
- Modular designs adapted to terminal layouts.
- Quality-controlled components and production.
- Dedicated R&D and technical support team.
- Worldwide export and installation experience.
- Single-source supply for conveyors and accessories.
Technical specifications
- Model: CSD
- Brand: Cheerong
- Baggage size range: Min. 250 mm × 200 mm × 100 mm; Max. 1000 mm × 600 mm × 400 mm
- Baggage weight capacity: 2 kg to 75 kg
- Available lengths: 1200 mm, 1400 mm, 5000 mm
- Operating speeds: 0.35 m/s, 0.4 m/s
- Start/stop frequency: 360 times
- Motor total power options: 0.37 kW or 0.55 kW
- Noise level: ≤65 dB(A)
- Conveyor belt material: PVC
- Width between sideguards: 550 mm, 650 mm, 700 mm
