Belt conveyor TY-07

baggagecheck-incurved

Product Overview

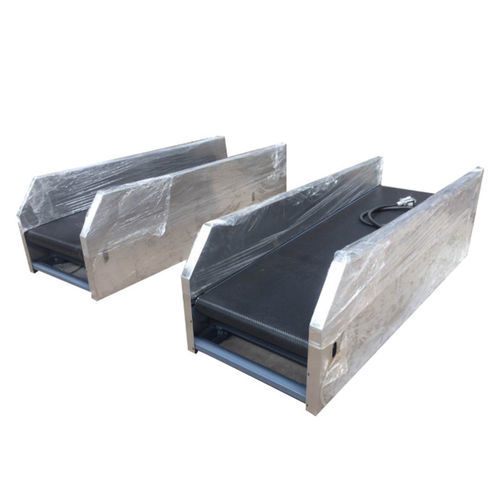

This airport baggage conveyor TY-07 by Cheerong is designed for efficient handling and reliable transfer of luggage within terminals. The system uses a PVC conveyor belt and a curved section to enable smooth changes of direction while maintaining stable transport of items.

Key benefits for airport operations

• Continuous and orderly baggage flow through check-in and delivery areas
• Suitable for a wide range of baggage sizes and weights (2–75 kg)
• Low noise operation (≤65 dB(A)) and selectable speeds for process integration
• Modular lengths and curved sections for layout flexibility

Technical Specifications

• Model: TY-07
• Brand: Cheerong
• Baggage size: Min. 250 mm × 200 mm × 100 mm; Max. 1000 mm × 600 mm × 400 mm
• Baggage weight capacity: 2 kg – 75 kg
• Available lengths: 1200 mm, 1400 mm, 5000 mm
• Operating speeds: 0.35 m/s, 0.4 m/s
• Start/stop frequency: 360 times
• Motor total power options: 0.37 kW, 0.55 kW
• Noise level: ≤65 dB(A)
• Conveyor belt material: PVC
• Width between sideguards: 550 mm, 650 mm, 700 mm
• Design: curved structure for direction changes; sturdy, smooth belt for stable luggage transport; manufactured from high-strength materials for heavy loads and long-term operation

Applications & Installation
The TY-07 is intended for installation at check-in counters, transfer lanes and delivery points. Its modular design allows integration with existing airport baggage handling systems and adaptation to site-specific layouts. Installation, commissioning and maintenance can be coordinated with airport ground handling teams.
