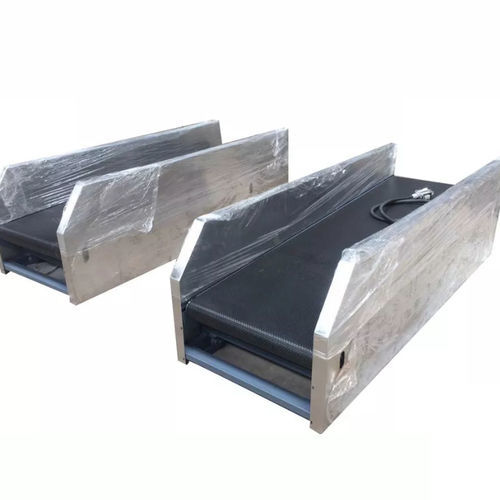

Belt conveyor CM-ABWS-A

baggagecheck-infor airport

Product Overview
Airport conveyor belt systems integrate an inline weighing unit to measure individual baggage during transfer between check-in, sorting and the aircraft hold, enabling accurate throughput control and data exchange with the airport baggage handling system (BHS). Designed for terminal and ground handling environments where inline weighing and controlled routing are required.

Key characteristics

• Handles a wide range of luggage sizes, types and weights to meet commercial airline baggage profiles.
• Integrated safety features: emergency stop, protective guards and interlocks to support airport safety procedures.
• Modular construction for installation within conveyor lines and easy access for maintenance and calibration.
• Standard conveyor belt material: PVC; alternative belt options available on request.

Product Pictures
Multiple images show the conveyor and weighing module in operational layouts, with close-ups of belt, sideguards and safety devices to support technical assessment.

Technical index (table)
Baggage Size
Min.: 250mm x 200mm x 100mm
Max.: 1000mm x 600mm x 400mm

Baggage weight
2 kg – 75 kg

Length Series
1200 mm, 1400 mm, 5000 mm

Speed Series
0.35 m/s, 0.4 m/s

Starts/Stops Frequency
360 times

Total Power of Motor
0.37 kW / 0.55 kW

Noise
≤65 dB(A)

Convey Belt Material
PVC

Width Series Between Sideguards
550 mm, 650 mm, 700 mm

FAQ / Why choose us

• Manufacturer specialised in airport ground equipment with international export experience.
• Advanced production equipment and a documented quality control system.
• Dedicated R&D team and technical support for system integration and commissioning.
• One-step solution services from design through delivery and on-site setup.

Technical specifications

• Model: CM-ABWS-A
• Brand: CHEERSMETAL
• Baggage size: Min. 250 mm x 200 mm x 100 mm; Max. 1000 mm x 600 mm x 400 mm
• Baggage weight range: 2 kg to 75 kg
• Length series: 1200 mm, 1400 mm, 5000 mm
• Speed options: 0.35 m/s, 0.4 m/s
• Start/stop frequency: 360 times
• Motor total power: 0.37 kW or 0.55 kW
• Noise level: ≤65 dB(A)
• Conveyor belt material: PVC
• Width between sideguards: 550 mm, 650 mm, 700 mm
