Belt conveyor CM-AWS-07

baggagecheck-infor airport

Introduction
Airport conveyor belt systems for check-in and baggage handling provide accurate weighing, routing and transport of luggage between check-in counters, sorting areas and aircraft. Designed for integration with airport baggage handling systems and weighing software, they support throughput and traceability while meeting airport operational requirements.

Product images

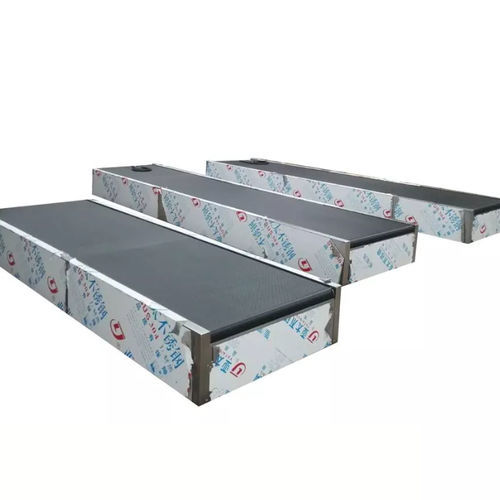

Available images: airport conveyor with integrated weighing module; weighing conveyor in multiple configurations and lengths.

Technical index
Baggage size: Min. 250 mm × 200 mm × 100 mm
Max. 1000 mm × 600 mm × 400 mm
Baggage weight: 2 kg–75 kg
Length options: 1200 mm, 1400 mm, 5000 mm
Speed options: 0.35 m/s, 0.4 m/s
Start/stop frequency: 360 cycles
Total motor power: 0.37 kW / 0.55 kW
Noise level: ≤65 dB(A)
Conveyor belt material: PVC
Width between sideguards: 550 mm, 650 mm, 700 mm

FAQ - Why choose us

• High-quality products at competitive prices.
• Manufacturer with experience in airport equipment.
• Advanced production machinery.
• Strict quality control procedures.
• R&D team of ten engineers.
• Dedicated professional sales team.
• Experience exporting worldwide.
• One-stop solution and after-sales support.

Technical specifications

• Model: CM-AWS-07
• Brand: CHEERSMETAL
• Baggage size: Min. 250 mm × 200 mm × 100 mm; Max. 1000 mm × 600 mm × 400 mm
• Baggage weight range: 2 kg – 75 kg
• Length options: 1200 mm, 1400 mm, 5000 mm
• Operating speeds: 0.35 m/s, 0.4 m/s
• Start/stop frequency: 360 cycles
• Motor total power: 0.37 kW or 0.55 kW
• Noise level: ≤65 dB(A)
• Conveyor belt material: PVC
• Width between sideguards: 550 mm, 650 mm, 700 mm
