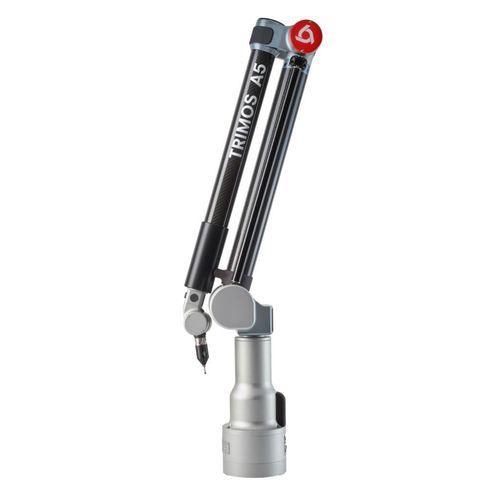

6-axis measuring arm A5 series

portable3D

6-axis portable arm for extremely easy and accurate 3D measurement. If you need to inspect a big and heavy part, don’t move it, take the A5 arms on it and get your measurements done quickly with great flexibility. The A5 models are the 6-axis arms configurations offering the largest range of the market, from 1.8 m to 9.0 m measuring range. Its design is made to be adaptable in every environment and compatible with a huge variety of fixtures. Its lateral mechanical spring loaded system provides a tireless balance of the arm while offering a comfortable handling exempted of any traction. The A5 arm may be provided with a wireless Bluetooth device, batteries or the two options for a complete wireless portability. - Measuring ranges up to 9000 mm - Electromagnetic brake locking system - Mounting base in option - Comfortable rotative handling - Interchangeable connector by default - Integrated Bluetooth System - USB connectivity - Inexhaustible balance due to the lateral springs system Model A5 | Measuring range (m) | Axes | Vol. accuracy (mm) | Weight (kg) A5 – 1800 | 1.8 | 6 | 0.023 | 8.4 A5 – 2500 | 2.5 | 6 | 0.030 | 8.9 A5 – 3200 | 3.2 | 6 | 0.042 | 9.3 A5 – 4000 | 4.0 | 6 | 0.057 | 10 A5 – 5000 | 5.0 | 6 | 0.065 | 12.5 A5 – 7000 | 7.0 | 6 | 0.080 | 14 A5 – 9000 | 9.0 | 6 | 0.150 | 16.5 *Values reported are expressed with 2 σ error. The values are indicative, for Blue and Red line models, and depend on surface quality and properties, surface diffusivity properties and ambient light conditions. E_Uni: Maximum permissible longitudinal error of measurement, Unidirectional MPE_p: Maximum permissible Error, probing – ISO 10360-2 A5 Arm - Operational Temperature: +5 ÷ +40 °C - Relative humidity: 90% without condensation - Marks of conformity: CE - Power requirement: 110 – 220 V / 50 – 60 Hz - Ingress protection: IP 54 - Connectivity: Bluetooth & USB - Autonomy on batteries: > 8 h - Certification: ISO 10360-12 up to 3.2 m, ISO 10360-2 above
