Measuring arm with laser scanner ScanSurf80

6-axis

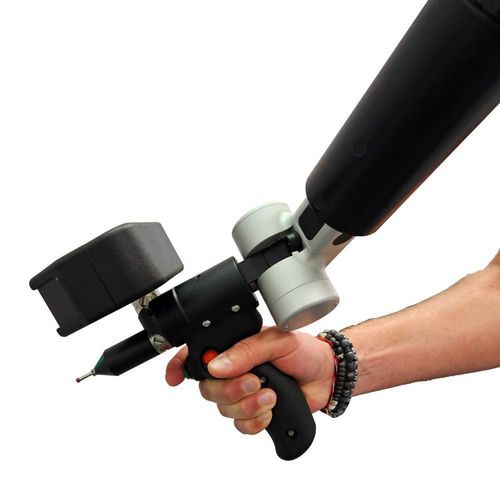

The Trimos ScanSurf80 laser scanner is the ultimate solution for scanning measurements and reverse engineering. This high-performance laser scanner provides very high measurement resolution and stability at high speeds of up to 6 kHz, thanks to high-quality height 2048 points per profile and is characterized by high resistance to stray light. Ergonomy: The ScanSurf scanner is optimized to be mounted on a Trimos Articulated Arm, reducing the bulk and weight on the holding axis. The laser scanner above the 6th axis makes the use of the tactile probe more comfortable. Accurate: The ScanSurf80 offers an exceptional balance of price and accuracy, positioning its performance as a top choice in the entry-level market. Always ready: With the ScanSurf Scanner, there’s no need to apply any change from probe to scanner and vice versa. The probe is mounted on an additional autojoint connector to be always ready for tactile measurements when needed. Versatile selection: The scanner features BLUE light technology, with a line length covering up to 110 mm, making it suitable for any surface and a wide range of applications. - Compatibility with the 7 axis A6 model - Shock and vibrations resistant - Light and compact - Renishaw Autojoint connector - Pointer laser - Ideal price / performance compromise - Third party software compatible and easy integration Technical Specifications: - Measuring range X: 50–110 mm - Working range Z: 83–213 mm - Max. points acquisition rate: 350,000 pt/s - Max. Points per line (PPL): 2048 - Resolution in X: 26–55 µm (>2000 points) - Resolution in Z: 3.2–14 µm - Linear accuracy: 32.5 µm - Laser color: Blue (405 nm) - Connection interface: Renishaw Autojoint - A-Line Measuring Arm compatibility: A6 - Communication: Ethernet TCP/IP - Laser class: 2M - Ingress Protection: IP 67 - Operational Temperature: +0 ÷ +45 °C - Stocking Temperature: -20 ÷ +70 °C - Operational Humidity: +5…+95% without condensation - Dimensions: 133 x 93 x 38 mm - Weight: 0.45 Kg - Software compatibility: PolyWorks|Inspector™ & PolyWorks|Modelor™ - Power supply: 18–30 VDC - CEM requirements: DIN EN 61000-6-2, 61000-6-4
