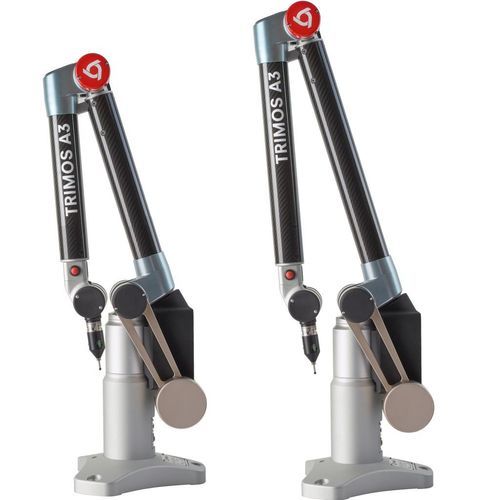

6-axis measuring arm A3 series

portable3D

Small 6-axis portable arm for extremely easy and accurate 3D measurement. The most precise A-Line range. The A3 is the standalone range of the Trimos A-line portable measuring arms. Its particularity is its small size enabling you to take it anywhere without any arrangement. The 6-axis configuration arm is available at 1.3 m and 1.8 m measuring range. The carbon fiber tubes and aluminum mount base allow the A3 arm an extremely stable and light structure. With its mass counterbalance, an excellent handling experience is guaranteed. - The most precise range - Portability extreme - No special arrangements required - Autonomy due to the integrated wireless system - Fixed or interchangeable probe - Fixed counterweight for a perfectly stable and durable balance - Integrated Bluetooth System - USB connectivity - Buttons mounted on the probe for improved measuring sensitivity Models A3 - Measuring range (m): 1.3 / 1.8 - Axes: 6 - Accuracy (mm): 0.016 (A3 – 1300), 0.020 (A3 – 1800) - Weight (kg): 9.5 (A3 – 1300), 10.4 (A3 – 1800) *Values reported are expressed with 2 σ error. The values are indicative, for Blue and Red line models, and depend on surface quality and properties, surface diffusivity properties and ambient light conditions. E_Uni: Maximum permissible longitudinal error of measurement, Unidirectional A3 Arm - Operational Temperature: +5 ÷ +40 °C - Relative humidity: 90% without condensation - Marks of conformity: CE - Power requirement: 110 – 220 V / 50 – 60 Hz - Ingress protection: IP 54 - Connectivity: Bluetooth & USB - Autonomy on batteries: > 8 h - Certification: ISO 10360-12 up to 3.2 m, ISO 10360-2 above
