7-axis or more measuring arm A6 series

3Dwith laser scannerportable

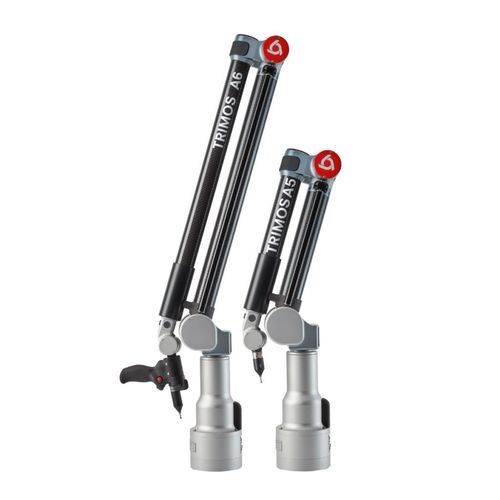

The Trimos A6 is a 7-axis portable measuring arm designed for extremely easy and accurate 3D measurements, with measuring ranges up to 9000 mm. It is typically used in combination with the Laser Scanner ScanSurf for point cloud inspection or reverse-engineering. The A6 features an ergonomic pistol handle with integrated buttons for a more comfortable scanning process, and offers the same measuring ranges as the A5 model. The probe connection is interchangeable with an autojoint system, allowing for simultaneous probing and scanning. Connectivity options include Ethernet, Bluetooth, and USB. - Measuring ranges up to 9000 mm - 7-axis arm - Ergonomic pistol hand - Interchangeable autojoint probe connection - Probe and scan simultaneously - Ethernet connection - Integrated Bluetooth System and USB connectivity Model A6 - Measuring range (m) - Axes - Vol. accuracy (mm) - Weight (kg) A6 – 1800 - 1.8 - 7 - 0.031 - 8.9 A6 – 2500 - 2.5 - 7 - 0.040 - 9.4 A6 – 3200 - 3.2 - 7 - 0.052 - 9.8 A6 – 4000 - 4.0 - 7 - 0.069 - 10.5 A6 – 5000 - 5.0 - 7 - 0.075 - 13.5 A6 – 7000 - 7.0 - 7 - 0.090 - 15 A6 – 9000 - 9.0 - 7 - 0.170 - 17.5 Model A6 + ScanSurf - Measuring range (m) - Axes - Vol. accuracy (mm) - Weight (kg) - Accuracy [mm] with scan ScanSurf 25 - Accuracy [mm] with scan ScanSurf 50 - Accuracy [mm] with scan ScanSurf 10 A6 – 1800 - 1.8 - 7 - 0.031 - 8.9 - 0.037 - 0.066 - 0.104 A6 – 2500 - 2.5 - 7 - 0.040 - 9.4 - 0.043 - 0.069 - 0.106 A6 – 3200 - 3.2 - 7 - 0.052 - 9.8 - 0.052 - 0.075 - 0.110 A6 – 4000 - 4.0 - 7 - 0.069 - 10.5 - 0.062 - 0.082 - 0.115 A6 – 5000 - 5.0 - 7 - 0.075 - 13.5 - 0.079 - 0.096 - 0.125 A6 – 7000 - 7.0 - 7 - 0.090 - 15 - 0.094 - 0.108 - 0.135 A6 – 9000 - 9.0 - 7 - 0.170 - 17.5 - 0.180 - 0.180 - 0.197 - E_Uni: Maximum permissible longitudinal error of measurement, Unidirectional - MPE_p: Maximum permissible Error, probing – ISO 10360-2 A6 Arm - Operational Temperature: +5 ÷ +40 °C - Relative humidity: 90% without condensation - Marks of conformity: CE - Power requirement: 110 – 220 V / 50 – 60 Hz - Ingress protection: IP 54 - Connectivity: Bluetooth & USB - Autonomy on batteries: > 8 h - Certification: ISO 10360-12 up to 3.2 m, ISO 10360-2 above - Extended warranty available - Compatible with ScanSurf 3D Laser scanner Technical Specifications / Features: - 7-axis portable measuring arm - Measuring range: up to 9.0 m (9000 mm) - Volumetric accuracy: from 0.031 mm to 0.170 mm (depending on model) - Weight: from 8.9 kg to 17.5 kg (depending on model) - Operational temperature: +5 to +40 °C - Relative humidity: 90% without condensation - Ingress protection: IP 54 - Power requirement: 110 – 220 V / 50 – 60 Hz - Connectivity: Bluetooth & USB - Battery autonomy: > 8 hours - Certification: ISO 10360-12 (up to 3.2 m), ISO 10360-2 (above 3.2 m) - CE conformity
