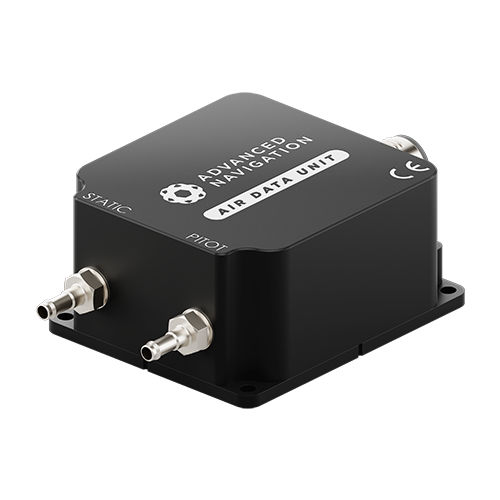

UAV air data unit 2.0

Overview
Air Data Unit 2.0 (ADU2) provides high-fidelity pitot airspeed, barometric altitude and external temperature measurements for airborne platforms. Available in three variants (ADU2-10, ADU2-30, ADU2-100), the ADU2 supports broad speed envelopes and supersedes the legacy Air Data Unit 1.0.

Integration and use
When integrated with an Advanced Navigation inertial navigation system (INS) such as Certus Evo, the ADU2 supplies precise air data to constrain INS drift, improving navigation resilience and extending duration, range, and position/heading accuracy for unmanned aerial vehicles operating in GNSS‑denied or contested environments.

Features

• Accurate air data sensing: Absolute and differential pressure sensors plus an external temperature sensor for precise airspeed, altitude and temperature outputs.
• Thermal stability: Factory calibration ensures measurement stability across the specified temperature range.
• Navigation resilience: Reduces inertial navigation drift when GNSS is degraded or unavailable.
• Rugged compact design: Low size, weight and power (60 × 50 × 29 mm; 120 g) for reliable operation on uncrewed platforms.

Available resources
Downloadable resources include datasheet, online reference manual, 3D model files, the Air Data Unit Viewer utility and firmware/firmware updates.

Notes
Air Data Unit 1.0 is end-of-life; ADU2 is the next-generation replacement. Performance figures assume pairing with an Advanced Navigation Certus Evo INS. Exceeding the specified Differential Proof Pressure (75 kPa) can permanently damage the unit.

Technical specifications

• Variants: ADU2-10, ADU2-30, ADU2-100
• Maximum airspeed (ADU2-10): 63 m/s (122 kts)
• Maximum airspeed (ADU2-30): 111 m/s (215 kts)
• Maximum airspeed (ADU2-100): 201 m/s (390 kts)
• Minimum airspeed (full accuracy) (ADU2-10): 8.0 m/s (16 kts)
• Minimum airspeed (full accuracy) (ADU2-30): 15 m/s (29 kts)
• Minimum airspeed (full accuracy) (ADU2-100): 25 m/s (49 kts)
• Airspeed resolution: 0.00005 m/s (0.0001 kts)
• Measured altitude range: 0 to 10,300 m (0 to 34,000 ft)
• Altitude resolution: 0.001 m (0.003 ft)
• Temperature range (full accuracy): -20 to 60 °C
• Temperature range (operational): -40 to 85 °C
• Differential proof pressure*: 75 kPa (exceeding this can permanently damage the unit)
• Input operating voltage: 5 to 35 V (±10%)
• Input protection: 40 V
• Reverse polarity protection: 100 V
• Power consumption (typical): 40 mA @ 5 V
• Pressure barb size (alternate size supported): 4 mm
• Dimensions: 60 × 50 × 29 mm
• Weight: 120 g
• Interface: RS232 / RS422
• Data rate: 9600 bps to 1 Mbps
• Protocol: Advanced Navigation Packet Protocol (ANPP)
• Output data rate: 20 Hz
• Performance note: Performance based on pairing with an Advanced Navigation Certus Evo INS.
• Key dates (Product End of Life program): Feb 16, 2026 — NRND & Last Time Buy; Feb 16, 2027 — Last Time Ship; Feb 16, 2028 — End of Support.
