Airplane cable OBDII

datapowerminiature

Product overview

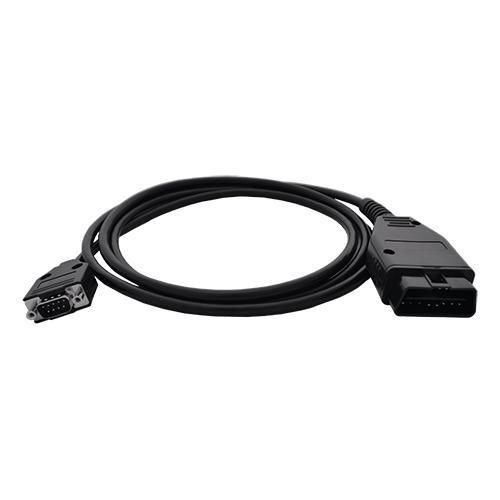

The OBDII Odometer is a smart interface cable that communicates with a vehicle’s onboard computer to provide vehicle speed as external aiding for Advanced Navigation INS solutions. The device outputs real-time vehicle speed over an RS232 serial data interface and, when connected to an INS product, allows for improved navigation accuracy when GPS is not available.

Features

• ABS Speed and Reverse Detection: Retrieves very accurate, high resolution vehicle speed from the ABS system on some vehicles. On other vehicles the transmission provides an accurate speed. Some vehicles also offer reversing detection via gearbox position.
• Miniature Durable Design: Miniature in-line design that is easy to fit into any vehicle; features a strong ABS plastic shell and tough strain-relieved cabling.
• Reliability: Built on a safety-based real time operating system with software designed and tested to safety standards. Hardware is designed to MIL specs and has fully galvanically isolated power and communications.

Downloads (summaries)

• Datasheet: Version 1.2 (1 Sep 2021)
• Reference Manual: Version 1.3 (07 Oct 2022)
• OBDII Odometer Viewer: Version 1.2 (28 Jan 2022) — a basic Java utility to view data from the OBDII Odometer.
• OBDII Odometer SDK: Version 1.0 (25 May 2018) — royalty-free example source code for interfacing via the AN Packet Protocol (C/C++, Java, .Net C#).
• Firmware: Version 1.2 (5 Sep 2022) — firmware for all hardware versions; changelog available in the reference manual.

Characteristics / Technical specifications

• Protocols Supported:
  • ISO 9141-2
  • ISO 11898
  • ISO 14230-4
  • ISO 15765
  • ISO 15765-4
  • SAE J1850 VPW
  • SAE J1850 PWM
  • SAE J1939
  • Other manufacturer specific protocols
• Interface: RS232
• Interface Isolation: Optically Isolated
• Speed: 115200 baud
• Protocol: AN Packet Protocol
• Output Data Rate: 10 Hz
• Operating Voltage: 9 to 16 V
• Input Protection: Surge; Over-voltage and Under-voltage; Brown Out; Reverse Polarity
• Power Source: OBDII Connector (vehicle power)
• Power Consumption (Typical): 0.72 W
• Operating Temperature: -40 °C to 85 °C
• Environmental Protection: IP54
• Weight: 202 grams
