Aircraft antenna Poseidon
for dronesGPSsatellite

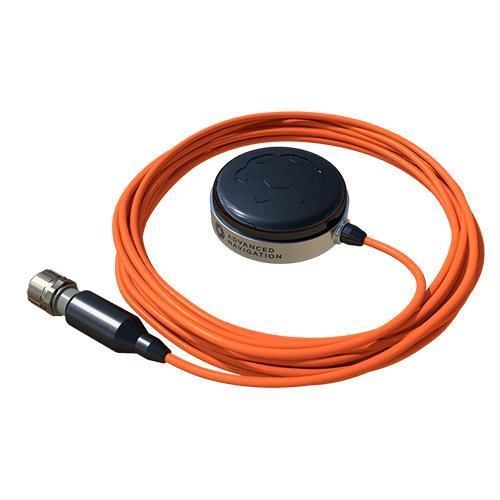

Aircraft antenna - Poseidon - Advanced Navigation - for drones / GPS / satellite

Aircraft antenna - Poseidon - Advanced Navigation - for drones / GPS / satellite - image - 2

Add to favorites

Compare this product

Go to the Advanced Navigation website for more information

Characteristics

Applications: for aircraft, for drones
Type: GPS, satellite

Description

Description
Poseidon is a subsea GNSS antenna designed for underwater vehicles which require the ability to obtain a GNSS fix when surfaced. The antenna is multi-frequency and suitable for marine vessels exposed to harsh conditions that are too extreme for a normal GPS antenna. It is capable of receiving L-Band corrections to provide accurate positioning at sea. The antenna is lightweight, compact, corrosion-resistant, and able to withstand depths of up to 3000 metres.

Features

3000m Depth Rating: rated for depths of up to 3000 metres, allowing it to be permanently mounted on deep diving subsea vehicles.
Multi-Constellation: supports GPS L1/L2/L5, GLONASS G1/G2/G3, GALILEO E1/E5, BeiDou B1/B2 and L-Band correction services.
Supported SBAS Systems: WAAS, EGNOS, MSAS, GAGAN, QZSS.
High-Performance: cutting edge RF design to achieve high positioning performance under difficult sea conditions; able to reject high levels of interference and multipath.
Compact Design: one of the smallest depth-rated GNSS antennas on the market with an integrated, compact and lightweight design.

Downloads (no links included)
Datasheet: Version 2.1 (27 Sep 2021). Reference Manual: Version 2.0 (17 Dec 2016). 3D Model: Version 12.0 (19 Feb 2018). Bulkhead Connector 3D Model: Version 2.0 (19 Feb 2018).

Technical specifications

Supported Navigation Systems: GPS L1/L2/L5; GLONASS G1/G2/G3; GALILEO E1/E5; BeiDou B1/B2; L-Band corrections.
Supported SBAS Systems: WAAS, EGNOS, MSAS, GAGAN, QZSS.
Antenna Element Gain: 4 dBiC.
Polarization: Right Hand Circular Polarization.
LNA Gain: 28 dB.
Out-of-band Rejection: < 1050 MHz : > 45 dB; < 1125 MHz : > 30 dB; > 1350 MHz : > 45 dB; < > 1450 MHz : > 30 dB; > 1690 MHz : > 30 dB; > 1730 MHz : > 40 dB.
Noise: < 2 dB.
Operating Voltage: 2.5 to 16 V DC.
Current Consumption: 20 mA (typical); 25 mA (maximum).
ESD Protection: 15 kV air discharge.
Dimensions: 67 mm diameter x 23 mm.
Cable Length: 3 m.
Operating Temperature: -40 °C to 85 °C.
Weight: 320 grams.
Housing Material: 316 Stainless Steel.
RoHS Compliant: Yes.
Shock: Vertical 50 g; Horizontal 30 g.
Maximum Pressure Rating / Depth Rating: 300 bar (3,000 m).
