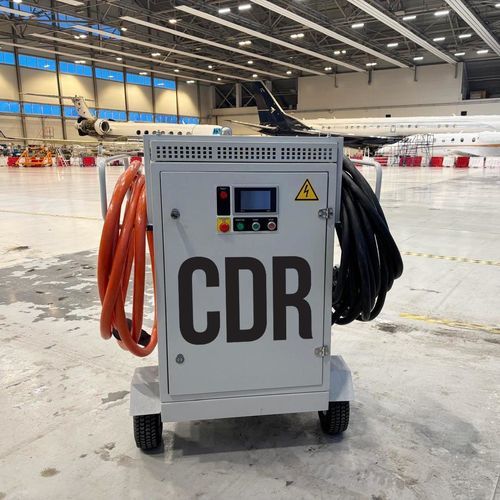

Ground power unit frequency converter F-400

mobilefixedpassenger boarding bridge mounted

The F-400 Series Frequency Converters are designed for the ground servicing of all aircraft types, laboratory equipment and similar applications, providing:

• 400 Hz frequency
• Rated capacity up to 360 kVA

These converters enable fast, reliable and safe engine starts with uninterrupted power supply.

Protocol
SCADA
MODBUS
TCP / IP
RS485

Adjustments
Any power rate according to client needs
Up to 5 output channels
Simultaneous work of output channels

GENERAL PARAMETERS
Climatic execution -55°C to +55°C
Relative humidity up to 100 %
Noise level: Execution: fixed, mobile, PBB
Protection class: IP55
Country of origin: Estonia, EU


INPUT PARAMETERS
Input voltage, V 3x220/3x440/3x460
3x480 ± 10 %, N, PE
Input frequency, Hz 50/60
Inrush current soft start


OUTPUT PARAMETERS
Number of outputs up to 5
Rated output power, kVA up to 360
Rated output voltage, VAC as per client
requirement(s)
Range of load changes, % 0-100
Total harmonic distortion (THD)
not worse, % 2
Amplitude modulation factor of the
output voltage, % ≤1.5
Output frequency, Hz 400 ± 0.01
Coefficient of efficiency, % 97
Line drop compensation automatic
Range of voltage regulation, V ±10 %
Range of frequency regulation, Hz 360-420
Error log storage up to 10 000 events
Output cable length up to 200 m
Interlock ON/OF/civil/military
Overload 600 sec — 125 %
60 sec — 150 %
30 sec — 200 %
10 sec — 300 %
1 sec — 400 %

Features
115/200V Voltage

• Absolute voltage quality — ISO 6858
• Max. phase unbalance is less than 2 V
• Automatic voltage drop compensation
• on the cable (up to 200 m)
• Phase angle 120º ± 2,5 %

400Hz Frequency

• Highly stable frequency: 400 Hz ± 0,01
• Adjustable: 360 Hz to 450 Hz

10 min Modularity

• Modular design for repairs in less than 10 minutes
