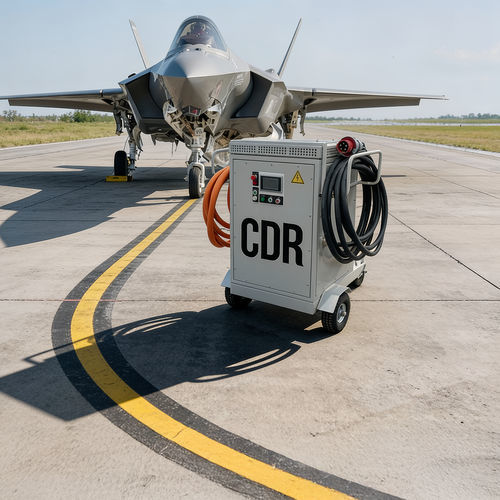

Electric GPU FR-270/400

fixedmobiletrailer-mounted

The 270 VDC Series units are engineered for demanding military aircraft ground servicing and mission-critical aviation applications.

• Dual output: 270 VDC/400 Hz
• Single output: 270 VDC only
• Rated output power up to 90 kW

Rated output power up to 90 kWts are designed to ensure maximum power availability and reduced maintenance time for military aircraft such as the F-22 and F-35 JSF.

Protocol
• SCADA
• MODBUS
• TCP/IP
• RS485

Adjustments
• Up to 2 output channels
• Flexible support for mixed aircraft power requirements
Offers 400 HZ, 28 VDC, 270 VDC and combined units AC/DC

GENERAL PARAMETERS
Climatic execution -55°C to +55°C
Relative humidity up to 100 %
Execution: fixed, mobile, PBB
Protection class: IP55
Country of origin: Estonia, EU

F-35 Compatibility
Meets stringent Lockheed Martin F-35 aircraft power quality requirements
Designed for fifth-generation military aircraft ground operations

Single Output
Rated output power up to 90 kW
Output voltage: 270 VDC ±3%
Meets 2ZE00004-0007, F-35 JSF power quality requirements
Interlock: 28 V at 37.5 A

Dual Output
Combined 270 VDC + 400 Hz AC output
Output 1: 270 V ± 3V at 267 A, 90kW
Output 2 (optional): 90 kVA at 0.8 PF lagging, frequency: 400 Hz ± 0,01, 115/200 V- WYE, ABC-N
