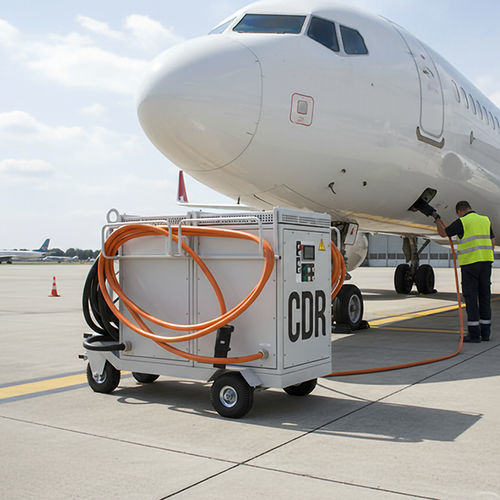

AC/DC GPU FR-400/28

electricfixedmobile

The FR-400/28 Series Combined Units are designed to power on-board systems of aircraft and helicopters during ground handling at airports, shop floors, and training centers.

• AC 400 Hz up to 360 kVA

• DC 28.5 V: continuous up to 1600 A
(peak up to 2500 A)

All channels can be adjusted and operated simultaneously.
Voltage drop compensation is individually set for each output.

Modes
• Dual-channel: 28/48/56 V
• Single-channel: 28.5 VDC Modes

Totally customizable
Trolley
Color
Cable length
Technical parameters

GENERAL PARAMETERS
Climatic execution -55°C to +55°C
Relative humidity up to 100 %
Execution: fixed, mobile, PBB
Protection class: IP55
Country of origin: Estonia, EU

Features
Independent AC and DC outputs
Possibility of simultaneous work of all channels

Ventilation cooling system
Top-mounted
Low noise fans
Less time for maintenance

Special outputs
400 Hz 36 V output
Ability to work on a 28/48/56 V mode
50/60 Hz sockets
