seat sandwich panel / fiberglass facing / aramid paper honeycomb core / for doors
ALUSTEP® FN

Add to MyAeroExpo favorites
Compare this product Don’t compare this product
seat sandwich panel seat sandwich panel - ALUSTEP® FN
{{requestButtons}}

Characteristics

  • Outer skin:

    fiberglass facing

  • Core:

    aramid paper honeycomb core

  • Applications:

    for seats, for doors

  • Width:

    1,220 mm (48 in)

  • Thickness:

    Min.: 5 mm (0 in)

    Max.: 25 mm (1 in)

  • Length:

    2,440 mm (96 in)

Description

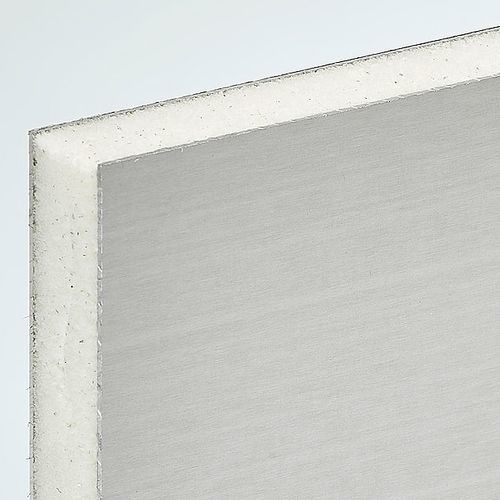

SANDWICH PANEL ALUSTEP FN
ALUSTEP® FN is a lightweight sandwich panel with a core in aramid paper and skins in glass fibre reinforced with phenolic resin.
This panel offers unique characteristics since it combines lightweight with high mechanical properties. Thanks to the low flammability of phenolic resin, the certified version of this panel can be used in shipyards, trains and transport in general.

A - SKINS IN GLASS FIBRE FABRIC impregnated with phenolic resin
Thickness mm: 0,25÷0,3



B - CORE IN ARAMID PAPER HONEYCOMB
Nomex
Diameter: from Ø1/8” to Ø3/16”, X1





X1 = other diameters on request



Certified version of ALUSTEP FN must be requested while asking for a quotation.
Certified products must be requested in advance and might have a price surcharge due to certified materials.



Certifications/Classifications for ALUSTEP FN’s fire Resistance - Tested by a certified institute
