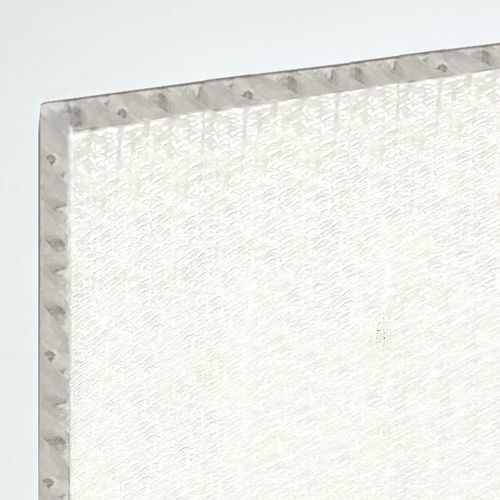

Aluminum sandwich panel CLEARSTEP
honeycombfor the aerospace industryfor flooring

aluminum sandwich panel
aluminum sandwich panel
aluminum sandwich panel
aluminum sandwich panel
aluminum sandwich panel
Add to favorites
Compare this product


Characteristics

Outer skin
aluminum
Core
honeycomb
Applications
for the aerospace industry, for flooring
Length

2,500 mm, 3,050 mm (98 in)

Width

1,200 mm, 1,520 mm (47 in)

Thickness

Min.: 6 mm (0.236 in)

Max.: 60 mm (2.362 in)

Description

CLEARSTEP is a lightweight sandwich panel with a core in polypropylene with glass fibre reinforced with epoxy resin. This panel offers unique characteristics since it combines lightweight with high mechanical properties. The application of this panels for example permits huge savings as far as weight and thickness of the slabs of natural stones, such as marbles and granite and mosaics are concerned. In this way, also the costs of these materials can be reduced. panel size mm standard dimensions 1180x2480 other dimensions on request thickness’ tolerance mm ± 0,4 dimension’s tolerance mm ± 30 skins’ thickness mm 0,4 glass fiber skin texture plain 500 gr/m2 600 tex Impregnation Epoxy resin honeycomb μm polypropylene diameter of honeycomb Ø = mm 8 honeycomb density Kg/m³ 80 adhesive for aluminum honeycomb Epoxy Resin
