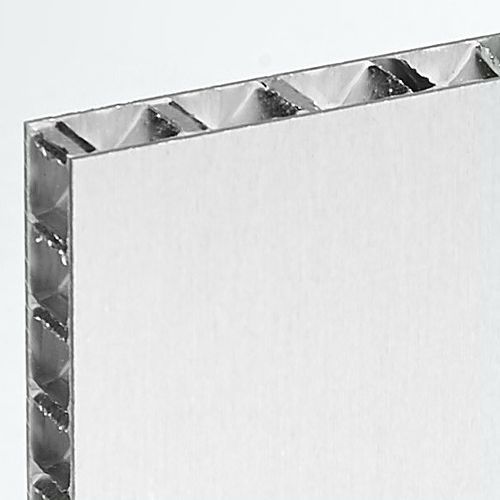

Seat sandwich panel COMPOCEL® AL​
aluminum facingaluminum honeycomb corefor flooring

seat sandwich panel
seat sandwich panel
seat sandwich panel
seat sandwich panel
seat sandwich panel
seat sandwich panel
seat sandwich panel
Add to favorites
Compare this product


Characteristics

Outer skin
aluminum facing
Core
aluminum honeycomb core
Applications
for flooring, for doors, for galleys, for seats, fire-resistant
Length

2,500 mm, 3,000 mm, 7,000 mm
(98 in, 118 in, 276 in)

Width

1,250 mm, 1,500 mm, 2,000 mm
(49 in, 59 in, 79 in)

Thickness

Max.: 25 mm
(0.984 in)

Min.: 6 mm
(0.236 in)

Description

COMPOCEL® AL​ is a sandwich panel with a core in aluminium honeycomb bonded to two skins of aluminium. A panel entirely in aluminum. It offers high mechanical properties, perfect when high rigidity and a low weight are required. Being a panel made of 95% aluminum, the fire reaction properties meet the reference standards for numerous applications. APPLICATIONS COMPOCEL AL panel is used in countless sectors: building to shipbuilding, from railways to interiors, from cabins to lifts etc .... Customers can customize the panel according to their needs as it is a 100% customizable product. PROESSING - CUTTING, SAWING, DRILLING AND SHAPING These mechanical processes are performed by a programmed CNC. CEL is able to produce customized shapes, holes and processing, according to costumer's specifications. - JOINING AND FIXING Some projects require an anchoring system to fasten panels to other surfaces. Cel offers different options: panels attached to each other by visible or blind rivets and screws; fixing with self-tapping screws (sealing washers) in aluminium or stainless steel fastening with drilling screws. -SUPERFICIAL FINISHING COMPOCEL AL finishes are selected carefully for indoor and outdoor applications; high quality polymeric paint such as PVDF and FEVE are available on request. CEL offers various surface treatments, in order to resist to heat peaks and temperatures.Overall orders are necessary in case customer needs specific finishes or colours;
