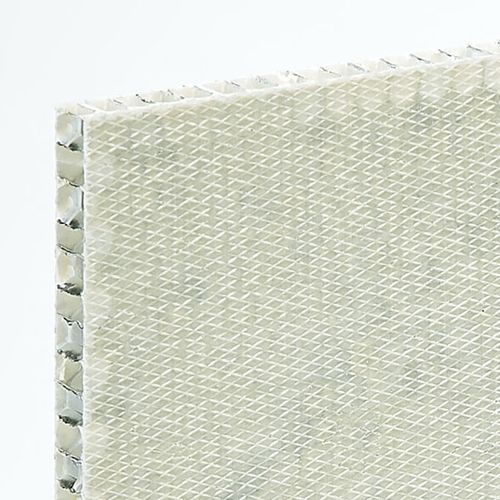

Aluminum sandwich panel ALUSTEP® 500
honeycombfor the aerospace industryfor flooring

aluminum sandwich panel
aluminum sandwich panel
aluminum sandwich panel
aluminum sandwich panel
Add to favorites
Compare this product


Characteristics

Outer skin
aluminum
Core
honeycomb
Applications
for the aerospace industry, for flooring
Length

2,500 mm, 3,050 mm, 4,000 mm
(98 in, 120 in, 157 in)

Width

1,250 mm, 1,550 mm, 1,600 mm
(49 in, 61 in, 63 in)

Thickness

Max.: 100 mm
(3.937 in)

Min.: 5 mm
(0.197 in)

Description

ALUSTEP® 500 is a sandwich panel with a core in aluminum honeycomb faced with fibreglass impregnated with epoxy resin. The application of ALUSTEP SERIES’ panels permits huge savings as far as weight and thickness of slabs of natural stones, such as marbles and granite and mosaics are concerned. With the reduction of material and weight, material, logistics and installation costs can be significantly reduced. * To Aluminium alloy series 3000 belong: Aluminium alloy 3003, Aluminium alloy 3005, Aluminium alloy 3103, Aluminium alloy 3104 ** Ø3/8” on request glass fibre skin Glass fibre Plain 500 gr/m² 600 tex Impregnation Epoxy resin honeycomb alluminium alloy 3000 series / 5000 series thickness of honeycomb foil μm 50 and 70 diameter of honeycomb Ø = mm from 3 to 19 honeycomb density Kg/m³ from 20 to 163 adhesive for aluminum honeycomb Epoxy Resin
