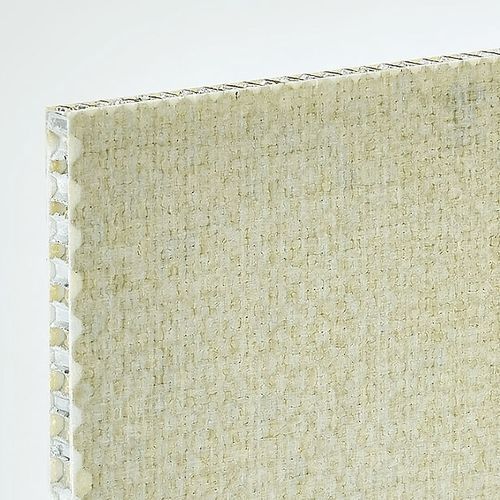

Fiberglass facing sandwich panel ALUSTEP® 500 LIGHT
honeycombfor the aerospace industryfor flooring

fiberglass facing sandwich panel
fiberglass facing sandwich panel
fiberglass facing sandwich panel
fiberglass facing sandwich panel
fiberglass facing sandwich panel
Add to favorites
Compare this product


Characteristics

Outer skin
fiberglass facing
Core
honeycomb
Applications
for the aerospace industry, for flooring
Length

2,500 mm, 3,050 mm, 4,000 mm (98 in)

Width

1,250 mm, 1,550 mm, 1,600 mm (49 in)

Thickness

Min.: 5 mm (0.197 in)

Max.: 50 mm (1.969 in)

Description

ALUSTEP® 500 LIGHT is a sandwich panel with a core in aluminium honeycomb faced with fibre glass impregnated with epoxy resin. This panel offers unique characteristics since it combines lightweight with high mechanical properties. The application of these panels for example permits huge savings as far as weight and thickness of the slabs of natural stones, such as marbles and granite and mosaics are concerned. In this way, also costs can be reduced. *To Aluminium alloy series 3000 belong: Aluminium alloy 3003, Aluminium alloy 3005, Aluminium alloy 3103, Aluminium alloy 3104 ** Ø3/8” on request glass fibre skin Glass fiber Plain 500 gr / m² 600 tex honeycomb alluminium alloy 3000 / 5000 series thickness of honeycomb foil μm 50 and 70 diameter of honeycomb Ø = mm from 3 to 19 honeycomb density Kg/m³ from 20 to 116 adhesive Epoxy Resin
