Management software GéoTITAN®

designinteroperabilityfor aeronautics

Overview
INSTRUMENT FLIGHT PROCEDURE DESIGN is a suite of aeronautical software solutions and modules for flight procedure design, aeronautical data management, charting and airspace design. It includes named components such as Data4Flight®, GéoTITAN®, AIP-GIS Charting® and Airspace4Flight® that work together to support procedure creation, validation, visualization, interoperability and product generation.

Data4Flight® — Aeronautical data management

• Centralized AIXM 5.1 extended database available in standalone or server mode based on PostgreSQL or SQLite technologies.
• Designed for aeronautical data management with an intuitive and easy-to-use approach to maximize user efficiency and promote interoperability through aeronautical data exchange.
• Collect and exchange data in supported formats and standards: AIXM 4.5 and 5.1, ARINC 424 and ARINC 816.
• Interoperability with GéoTITAN®, AIP-GIS Charting®, AIM4Flight® and Thales TopSky®.
• 2D and 3D environment visualization for aeronautical data.
• Integrated business rule engine for verification with predefined rules datasets (ADQ, AIXM, ARINC 424) and support for customizable business rules.
• Export: Automated Flight Procedure Design technical report creation in Excel and Word formats.

AIP-GIS Charting® — Aeronautical charting

• Software application for aeronautical charting allowing editing, update and publication of civil and military charts in compliance with ICAO Annex 4.
• Built on ArcGIS (ESRI) platform.
• Advanced chart production workflows and direct link to AIXM central database.
• Preserves data integrity throughout chart production.
• Cartographic data tools including chart temporality management, cartographic feature creation and data-driven elements (Off view trajectory, Profile View, Dynamic tables).
• Product management features: comprehensive charts and templates document management, robust symbol library, advanced labeling and rule-based symbol and text generation.
• Quality control features: automatic identification of changed features and impacted charts, report generation and workflow management.
• Templates: pre-configured ICAO Annex 4 templates and customizable templates for cartographer-specific requirements.

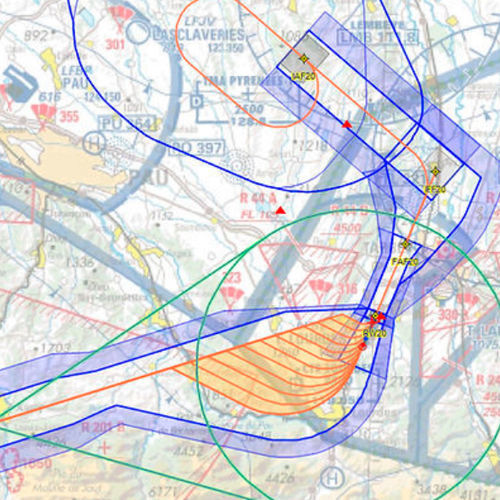

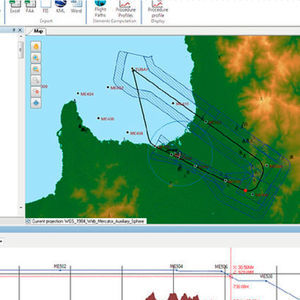

GéoTITAN® — Procedure trajectory and protection area design

• Expert application dedicated to automated creation and management of conventional or RNAV IFR trajectories and their protection areas.
• Database-driven approach minimizing manual input and focusing user interface on procedure design tasks.
• Geographical environment tailored to procedure design with data quality and consistency checks.
• Automated geodesic computations using WGS84 reference.
• Automated computation of protection areas and minimum altitudes from obstacles and digital terrain models (DTM).
• Automated regulation checking and flexible design with automated templates.
• Interoperability with standards and external systems including AIXM 4.5 and 5.1 and integration with Data4Flight® and AIM4Flight®.

Airspace4Flight® — Airspace and route design

• Module that allows design of airspace and route tracks directly in the Data4Flight® database.
• Displays and edits airspace or routes and supports validation of airspace and en-route track attributes against aeronautical data business rules.
• Supports airspace and route-specific analysis to comply with ICAO design recommendations (Annex 11) and ICAO Doc 8168 volume 2 (Aircraft Operations – Construction of Visual and Instrument Flight Procedures).

Visualization, verification and export

• 2D and 3D visualization environments across modules.
• Integrated verification via business rules with predefined datasets (ADQ, AIXM, ARINC 424) and ability to create custom rules.
• Automated export and reporting, including technical reports for Flight Procedure Design in Excel and Word formats.

Caractéristiques / spécifications techniques

• Supported data formats and standards: AIXM 4.5, AIXM 5.1, ARINC 424, ARINC 816.
• Database options: centralized AIXM 5.1 extended DB; standalone or server modes; PostgreSQL or SQLite support.
• GIS platform: AIP-GIS Charting® built on ArcGIS (ESRI).
• Coordinate system / geodesy: WGS84 geodesic computations.
• Visualization: 2D and 3D environment support.
• Verification engine: business rule engine with ADQ, AIXM and ARINC 424 rule sets; customizable rules.
• Automated computations: geodesic calculations, protection areas, minimum altitudes from obstacles and DTM, automated regulation checking.
• Product outputs: automated technical reports in Excel and Word; chart production and publication compliant with ICAO Annex 4.
• Interoperability: GéoTITAN®, AIP-GIS Charting®, AIM4Flight®, Thales TopSky® and other external systems via standard formats.
• Templates: pre-configured ICAO Annex 4 templates and customizable templates for cartographers and procedure designers.
• Quality control: automatic identification of changed features and impacted charts, report generation and workflow management.
