Aircraft MFD SkyView HDX

with GPS

Product Overview
Dynon is developing an integrated, certified-capable IFR GPS navigation capability for the SkyView HDX avionics system. The solution integrates navigation, flight planning, and approach guidance into SkyView HDX via a remote-mounted IFR module and antenna, eliminating the need for a separate panel-mounted navigator.

Key Product Highlights

• Full IFR Capabilities, including LPV Approaches: Supports RNAV approaches down to LPV minimums with lateral and vertical guidance.
• Zero Panel Space Required: Remote-mounted module installs behind the instrument panel, preserving radio stack and panel real estate.

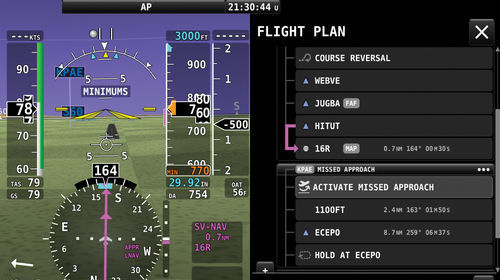

• Intuitive Next-Gen Flight Planner: On-screen planner for VFR and IFR; easily loads departures, arrivals and approaches.
• MOSAIC-Ready Integration: Designed to support MOSAIC-enabled IFR in Light Sport Aircraft, offering a compact solution for tight panels and weight-limited airframes.
• Seamless Autopilot Integration: Fully couples to Dynon autopilot for coupled LPV approaches.
• Future-Proof Upgrade Path: Adds IFR capability via hardware module and software update without replacing SkyView HDX displays.

Hardware & Data Requirements
The capability is delivered by a remote-mounted IFR module and antenna that integrate into SkyView HDX using the system's modular architecture. A current IFR navigation database subscription is required for IFR operations; approach plates and charts are optionally available. The IFR capability is unlocked with the latest SkyView software update after module installation.

Compatibility
Available for all SkyView HDX displays when equipped with the new module. Legacy SkyView Classic and Touch systems are not compatible; display upgrade programs are available separately.

Capabilities & Integration
Supports RNAV procedures (SIDs, STARs, LPV/WAAS). The internal IFR navigator fully integrates with the Dynon autopilot for hands-off LPV approach flying. No additional ARINC adapter is required for SkyView integration.

Certification, Pricing & Availability
Dynon is actively engaged in FAA certification activities to deliver a fully compliant IFR solution for experimental and type-certificated aircraft. The product is not approved for IFR operations until certification is complete. Final pricing and shipping dates will be announced closer to release.

Design Rationale
This announcement supports manufacturers and builders preparing for MOSAIC-driven IFR capability in light aircraft and provides a forward-upgrade path for pilots designing compact panels today.

Technical Features / Specifications

• Integrated IFR GPS navigation capability for SkyView HDX
• Remote-mounted IFR module and antenna (module mounts behind instrument panel)
• Full RNAV approach support including LPV (vertical and lateral guidance)
• On-screen next-generation flight planner for VFR and IFR
• Full coupling to Dynon autopilot for approach flying
• Requires current IFR navigation database subscription; optional charts/plates available
• Unlock via SkyView software update after module installation
• Designed for MOSAIC compatibility with light sport aircraft
• Currently in development; undergoing FAA certification; not yet approved for IFR operations
