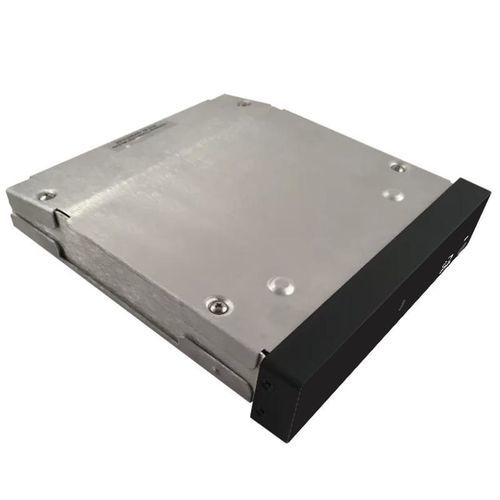

Aircraft audio panel SV-AUDIO-6BTR

Overview
The SV-AUDIO-6BTR is a remote-mounted audio panel designed for integration with SkyView HDX to save instrument panel space. It supports 2–6 place crew configurations and offers flexible control of multiple COM and NAV radios while providing advanced audio processing, multiple music inputs and Bluetooth streaming for operational and crew audio needs.

Highlights

• Supports 2–6 place operation
• Flexible control of up to two COM radios and two NAV radios, plus additional switched and un-switched inputs for avionics and external audio sources
• Fully remote-mounted for seamless SkyView HDX integration and instrument panel space savings
• Trig Digital Noise Reduction (TDNR) with IntelliVox® automatic squelch and mic threshold selection
• IntelliAudio® True Dimensional Sound for spatial separation when monitoring two COM radios
• Trig Active Mute (TAM) to suppress background noise and radio static
• Advanced Bluetooth® connectivity supporting multiple devices for music streaming
• Two wired stereo music inputs and four un-switched audio inputs for additional avionics
• Integrated USB-C high-power 15W charging port with built-in short-circuit protection
• Monitor Mode that mutes non-primary radios when the primary radio is active
• Three music mute modes (Mute On, Mute Off, Radio Mute) and three isolation modes (Pilot Isolate, Intercom All, Crew Isolate)

Pricing
USD $2,295

Technical specifications

• Model: SV-AUDIO-6BTR
• Manufacturer: Dynon Avionics
• Form factor: Remote-mounted audio panel (designed for SkyView HDX integration)
• Supported crew positions: 2–6 place operation
• Radio control: Flexible control for up to two COM and two NAV radios
• Audio inputs: Two wired stereo music inputs; four un-switched audio inputs
• Bluetooth: Advanced Bluetooth connectivity with multiple device streaming
• Noise reduction: Trig Digital Noise Reduction (TDNR) with IntelliVox® automatic squelch
• Audio processing: IntelliAudio® True Dimensional Sound; Trig Active Mute (TAM)
• USB: Integrated USB-C charging port, 15W, with auto-protection
• Modes: Monitor Mode; three music mute modes; three isolation modes
• Primary benefits: Reduces cockpit noise and fatigue, improves situational awareness, saves instrument panel space
