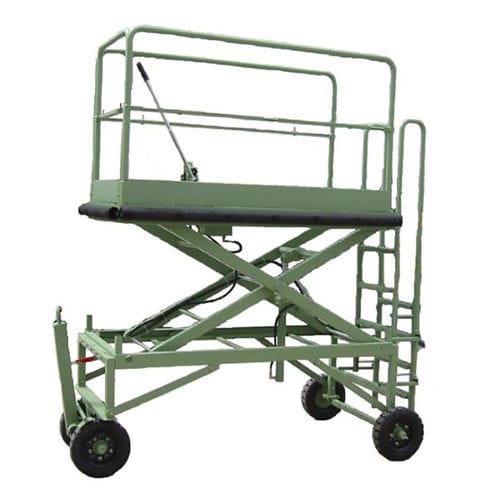

Maintenance lifting platform 0327.00

accessscissorfor airport

Product description
LANGA towable hydraulic maintenance and access stands (ref. 0327.00) are engineered to service all commercial aircraft. The variable-height configuration allows precise adaptation to specific maintenance tasks and customer requirements. Welded steel construction, hydraulic actuation with hand pump and safety check valve, and heavy-duty non-slip platforms ensure safe operation on aprons and parking areas.

Standard features

• Skydroll resistant paint (yellow standard); all unpainted parts galvanized.
• Foldable and removable handrails with rubber protection on top.
• Working platform and steps in non-slip material with heavy-duty grating.
• Solid rubber wheels; tow bar with slewing ring for steering and parking brake on front axle activated when tow bar in vertical position.
• Front rubber bumpers for impact protection.
• Hydraulic cylinder assisted by hand pump, with check valve on the cylinder to lock the platform in case of hydraulic failure.
• Designed for movements on tarmac and aircraft parking areas at towing speeds up to 25 km/h.
• CE certificate according to EN 12312-8.

Optionals

• Special paint color.
• Rubber bumpers around full platform perimeter.
• Heavy-duty swivel castors with integral brakes for movements inside hangars.

Technical specifications

• Reference: 0327.00
• Denomination: MAINTENANCE PLATFORM
• Designed to service all commercial aircraft
• Variable-height configuration for adaptation to customer requirements
• Welded steel construction
• Hydraulic installation with hand pump and hydraulic cylinder including check valve to lock platform in case of hydraulic failure
• Maximum towing speed on tarmac and aircraft parking areas: up to 25 km/h
• Working platform and steps: non-slip material with heavy-duty grating
• Handrails: foldable and removable, with rubber protection on top
• Wheels: solid rubber wheels; tow bar with slewing ring for steering
• Parking brake: on front axle, actuated when tow bar in vertical position
• Front rubber bumpers
• Finish: Skydroll resistant paint (yellow standard); unpainted parts galvanized
• Certifications: CE certificate according to EN 12312-8
• Available optionals: special paint color, perimeter rubber bumpers, heavy-duty swivel castors with integral brakes
