Maintenance lifting platform 1670.00

for aircraft

Product overview

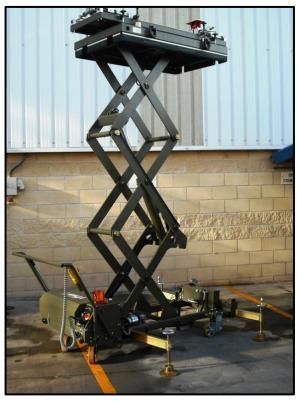

The LIFTING PLATFORM ENGINE R/I is a height-adjustable platform with adjustable supports designed for removal and installation of engines on CN-235 and C295 aircraft. The standard lifting drive is an electro-hydraulic pump with a mechanical system for the motor support table, providing controlled multi-axis movement and secure positioning.

Key features

• Skydroll resistant paint (NATO green standard); all unpainted parts galvanized
• All-steel construction
• Four caster wheels with locking position and a retractable towbar (towing up to 6 km/h)
• Four mechanical stabilizers and additional mechanical stabilizers to lock the platform in position
• Four solid rubber wheels to assist towing
• Lifting powered by electro-hydraulic pump (P/N 1670.00); optional hydro-pneumatic pump available
• Double-action hydraulic cylinder
• Soft mechanical movements in longitudinal, transversal, pitch, roll and yaw directions for precise alignment
• Two 12 V batteries connected in series for power supply
• Hand pump backup for use when no power supply is available
• Handle for moving and positioning the equipment
• CE certificate

Options

• Hydro-pneumatic pump drive (P/N 1673.00)
• Special tool for supporting aircraft propeller (P/N 1670.12)
• Special paint color on request

Technical specifications

• Model: LIFTING PLATFORM ENGINE R/I
• Reference / Product code: 1670.00
• Suitable aircraft: CN-235, C295
• Drive: electro-hydraulic pump (P/N 1670.00); optional hydro-pneumatic pump (P/N 1673.00)
• Special tool available: propeller support (P/N 1670.12)
• Power supply: Two 12 V batteries connected in series
• Hydraulics: Double-action hydraulic cylinder
• Manual backup: Hand pump when no power supply
• Mobility: Four caster wheels with lock, retractable towbar (towing up to 6 km/h), four solid rubber wheels
• Stabilization: Four mechanical stabilizers; mechanical stabilizers to block the platform in position
• Movement control: Soft mechanical movements in longitudinal, transversal, pitch, roll and yaw directions
• Construction: All-steel construction; unpainted parts galvanized
• Finish: Skydroll resistant paint (NATO green standard) or special paint color
• Certification: CE certificate
