Maintenance lifting platform 1931.50

accessscissorfor aircraft

Product description

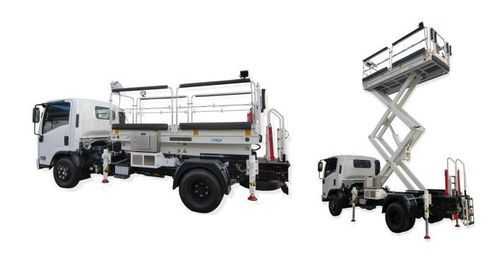

The truck-mounted scissor platform is designed for aircraft maintenance tasks, providing safe, controlled access to various aircraft heights. The platform features adjustable height and, on selected models, a longitudinally extendable working deck for top-side access. Hydraulic stabilizers ensure rapid stabilization on uneven ground, and multiple safety systems prevent movement if stabilizers are not deployed or the platform is tilted.

Main features

• Suitable for installation on various commercial chassis (Mercedes, Iveco, Isuzu, Nissan, MAN, etc.).
• Standard horizontal extension: 1500 mm (maximum load on extended area limited to 150 kg).
• Four hydraulic stabilizers with horizontal extension, operable from ground level.
• Vertical movements controlled from the platform and from ground controls; control panel available inside truck cabin.
• Rubber bumpers around the platform perimeter and electronic safety bumper on horizontal extension.
• Anchor points for safety harnesses and non-slip aluminium flooring; fixed step ladder access.
• Fixed perimeter handrail and inward-opening access door.
• Emergency lowering from ground level and manual emergency hand pump for descent/removal of stabilizers.
• Check valves on lift cylinders to prevent platform collapse in case of hydraulic failure.
• Hydraulic power via PTO coupled to diesel engine; optional emergency electrohydraulic powerpack.
• Acoustic and visual movement indicators and adjustable working lamp (vertical and horizontal adjustment).
• Designed for outdoor use in winds up to 75 km/h (40 knots).
• CE certified according to EN 280 and EN 12312-8.

Options

• Side access staircase for platform entry.
• Emergency electrohydraulic powerpack to enable full operation in case of diesel engine failure.

Technical specifications

• Equipment type: Truck-mounted scissor platform for aircraft maintenance.
• Horizontal extension: 1500 mm (standard).
• Maximum load on extended area: 150 kg.
• Stabilization: Four hydraulic stabilizers with horizontal extension, ground-operated.
• Movement control: Vertical control from platform and ground; control panel inside truck cabin.
• Power: Hydraulic via PTO coupled to diesel engine; optional emergency electrohydraulic powerpack; emergency manual hand pump.
• Safety devices: Check valves on cylinders; acoustic and visual warnings; electronic safety bumper; safety harness anchor points; rubber bumpers.
• Access & flooring: Fixed step ladder; non-slip aluminium floor; fixed handrail and inward-opening access door.
• Lighting: Adjustable working lamp (vertical and horizontal).
• Operational limits: Suitable for open areas up to 75 km/h (40 knots) wind speed.
• Certifications: CE certificate per EN 280 and EN 12312-8.
