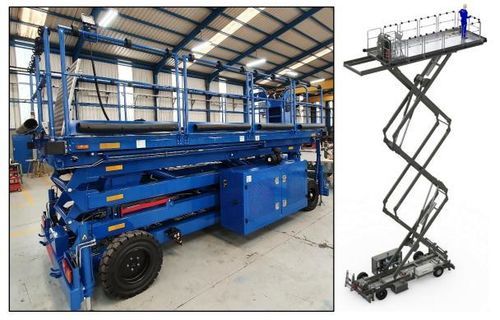

Access lifting platform 2052.80

maintenancescissorfor aircraft

Product description
The Self-propelled scissor platform is designed for aircraft maintenance tasks. It provides quick, safe access to multiple aircraft heights. The platform height is adjustable and the working platform can be displaced longitudinally to reach upper aircraft areas.

Standard Features

• Double speed: quick and slow modes (slow speed engages automatically when platform is extended).
• Negative brakes automatically applied when the equipment stops.
• Top-platform horizontal displacement (standard): 1500 mm.
• Poclain-powered hydrostatic transmission.
• 4 hydraulic stabilizers, adjustable manually or automatically (inclinometer-controlled).
• CE type Certificate.
• Maximum wind speed with extended platform according to EN 1915-2: 45 km/h.
• Four-step left-hand stair access on forward side with tool space; non-slip metal steps.
• Forward-side control panel with handwheel for direction and accelerator foot pedal for diesel units; joystick for electrical platforms (standard).
• 4 emergency stop buttons (2 upper, 2 lower).
• Anchoring points on platform for safe operation.
• Emergency systems to lower the platform safely and to tow it to maintenance facilities; maximum towing speed 2 km/h without distance limit.
• Redundant operation via electrohydraulic emergency pump.
• Safety device prevents platform rise if inclination > 2º.
• Quick diagnostic device.
• Steel fuel tank, maximum capacity 120 litres; minimum autonomy approx. 12 hours.
• Front and rear LED position lights.
• Safety device limits drive to low speed when access door is open.

Options

• Top-platform horizontal displacement (option): 2800 mm.
• Touchscreen control panel with diagnostic system.
• Joystick steering controls instead of wheel steering.
• Additional lower-frame control panel for maintenance.
• Inspection manhole on extendable platform to ease maintenance access.
• Height-adjustable handrails with retractable locking at any intermediate position.
• Zero Touch Policy: onboard sensors and telemetry coordinating GSE approach to aircraft (speed and stop control).
• Maximum wind speed with extended platform according to EN 1915-2 (option): 75 km/h.

Technical specifications

• Model name: Self Propelled Platform.
• Platform type: Self-propelled scissor platform for aircraft maintenance.
• Top platform horizontal displacement (standard): 1500 mm.
• Top platform horizontal displacement (option): 2800 mm.
• Drive transmission: Poclain-powered hydrostatic transmission.
• Speed modes: Double speed (quick and slow); slow speed automatically when platform extended.
• Brakes: Negative brakes, automatic when stopped.
• Stabilizers: 4 hydraulic stabilizers, manual or automatic via inclinometer.
• Safety: 4 emergency buttons (2 upper, 2 lower); anchoring points; device to prevent rising if inclination > 2º; device to limit drive to low speed when access door open.
• Emergency systems: Electrohydraulic emergency pump; devices to descend and tow platform; maximum towing speed 2 km/h without distance limit.
• Fuel tank: Steel tank, capacity up to 120 litres; minimum autonomy approx. 12 hours.
• Lighting: Front and rear LED position lights.
• Access: Four-step left-hand stair on forward side with non-slip metal steps and tool space.
• Controls: Forward-side control panel with handwheel for direction and accelerator foot pedal for diesel; joystick for electric platforms (standard).
• Diagnostics: Quick diagnostic device; optional touchscreen panel with diagnostic system.
• Wind tolerance: Standard extended platform max wind speed 45 km/h (EN 1915-2); optional up to 75 km/h (EN 1915-2).
• Additional options: Joystick steering, extra lower-frame control panel, inspection manhole, adjustable handrails, Zero Touch Policy sensors/telemetry.
• Certification: CE type Certificate.
