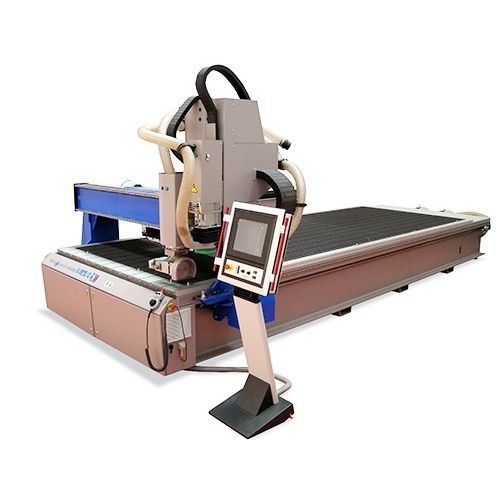

CNC milling machine MECABOND

horizontalverticalfor aeronautics

High productivity 4 axis multi head milling CNC machine optimized for sign applications and frontages in the building area. High productivity system for the rapid cutting of sheet materials in the building (facades), sign or fitting out of commercial vehicles (refrigerated trucks, etc.) sectors. 4-axis CNC milling machine that can be equipped with a high-power vertical electrospindle and a horizontal electrospindle that can be rotated 360 degrees. TECHNOLOGIES Kinematic assembly with fixed table and mobile gantry. Monobloc frame in mechanically welded steel. Mobile gantry in mechanically welded steel. Vacuum tray in aluminum profile. Support of the plates by the vacuum generated either by lateral channel turbines or by vacuum pumps with nozzles. Automatic selection of zones by solenoid valves. Timing stops automatically retractable plates. Motorization by AC Brushless servomotors on the 6 axes (X1-X2-Y-Z1-Z2-C). Transmission by high precision rack and pinion systems for X and Y axes, ball screw on Z axes, gearbox without play on C axis Guides by rectified rails and pre-loaded pads with ball circulation. MECANUMERIC CN7000 Digital Control with 15 inch touch screen, integrated hard drive, Ethernet port, USB port. Import of files in ISO code. Wide choice of horizontal and vertical electrospindles. Some of the materials that can be used (depending on the electrospindle and the tool chosen): Rigid plate plastics (PMMA-PC-PS-PVC-ABS ..) Expanded plastics and cellular sheets Rigid foam (PU- PS-…) Semi-rigid foams (KAPA line®,…) Composite materials for the building industry: Alucobond®, Dibond®, Reynobond®, ..
