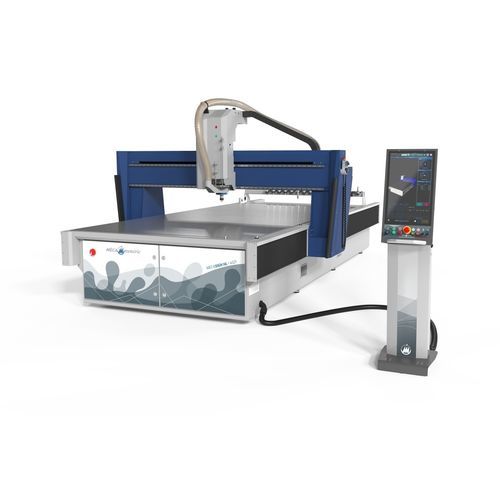

CNC milling machine MECASIGN NL

verticalfor aeronautics3-axis

Designed for easy use and maximum performance
A robust and 100% versatile milling machine

Overview
Thanks to numerous features, the MECASIGN NL is a versatile machine which includes everything necessary for precise and rapid cutting and machining. Packaged machine including all essential options for milling only or milling + knife cutting with the additional lateral head.

Strengths

• All-in-one machine including lateral head for: vertical blade (vibrating or not)
• Orientable blade (vibrating or not)
• Shaped wheels
• Disk blade
• Scoring stylus for surface marking

Included features

• Aluminium vacuum table with independent suction zones
• Adjustable suction nozzle
• Alignment laser
• Retractable indexing stops

Suitable materials

• Polymers: PMMA, PEHD, PS, PET, PETG, PU, PC, ABS, PVC… (solid or honeycomb panels)
• Wood and by-products: MDF, TRESPA, phenolic derivatives, natural wood
• Light alloys: Aluminium, Brass, Copper, Zinc
• Composites: Alucobond®, Dibond® and similar, Glass/Epoxy, Carbon/Epoxy
• Honeycomb panels: Nida®, Nomex®
• Machinable plates for molds and models
• Rubber and derivatives
• Foams with all densities
• Paper, cardboard and derivatives
• Thin plastics (PVC, PS, PET, PETG, ABS, PC…)

High tool shop

• 10 to 15 slots for ISO30 cones and/or heads for special tools
• 2 sensors available (depending on configuration)

Numerical control & HMI

• 21 inches vertical touch screen on mobile control panel
• Modern, simple and user-friendly HMI with online operator guidance (to avoid oversights and errors)

Caractéristiques / spécifications techniques

• Structure: Monobloc chassis and mobile gantry in mechanical welded high inertia steel
• Table: Aluminum fixed table (consumable top cover optional)
• Guidance: Grinded prismatic rails and preloaded ball bearings
• Transmission: Ball screw with preloaded nuts on all axes (two ball screws on X axis)
• Motorization: Brushless motors with absolute encoders on all axes (two motors on X axis)
• Tool change: Automatic ISO30
• Electrospindle: HSD951-SM (see spindle block for power and speeds)
• Vacuum table with independent suction zones and adjustable suction nozzle
• Alignment laser and retractable indexing stops

DIMENSIONS (two variants)
MECASIGN NL 3121 | MECASIGN NL 4121
X axis travel (mm): 3085 | 4085
Y axis travel (mm): 2070 | 2070
Z axis travel (mm): 245 | 245
Passage between uprights (mm): 2260 | 2260
Passage under gantry or under spindle nose (mm): 320 | 320
Length (mm) - pumps not included: 4470 | 5470
Width (mm): 2963 | 2963
Height (mm): 2250 | 2250
Average weight (kg): 3700 | 4500

POWERFUL ELECTROSPINDLE WITH HIGH ROTATION SPEED
Model: HSD951-SM
Max power S1-S6 (kW): 8 - 9.6
Max torque S1/S6: 6.4 / 7.7 Nm at 12,000 rpm
Rotation speed (tr/min): 0 to 24,000 rpm
Coolant: AIR
Cooling: Fan
Tool changing: Automatic ISO30
