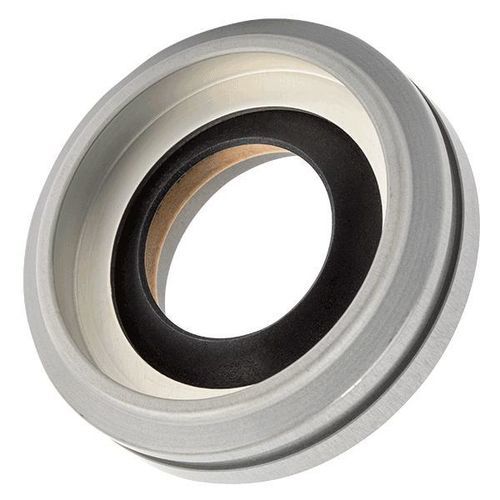

Lip seal 20circularmetalpolymer
Add to favorites
Compare this product
Characteristics
- Type
- lip
- Configuration
- circular
- Material
- metal, polymer
- Other characteristics
- large-diameter, high-temperature, dynamic, radial
- Temperature limit
Max.: 200 °C
(392 °F)Min.: -50 °C
(-58 °F)- Pressure limit
Max.: 500,000 Pa
(72.5 psi)Min.: 0 Pa
(0 psi)- Diameter
Max.: 330 mm
(12.992 in)Min.: 6 mm
(0.236 in)- Outer diameter
Max.: 380 mm
(14.961 in)Min.: 16 mm
(0.63 in)- Speed
Max.: 25 m/s
(82 ft/s)Min.: 0 m/s
(0 ft/s)
Description
Overview
Omniseal® 20 lip seals are modifications of the Omniseal® 10 seal design. This sealing solution provides extended service life and improved sealing of gases and abrasive media through a higher lip load, and offers increased runout capability. Operating speed and pressure limits follow those noted for the Omniseal® 10 lip seal.
Typical applications
Standard specifications
Materials: Metal outer case; high-performance polymer compounds; material selection performed by design engineers to meet application requirements.
Used in: Gearboxes, submersible pumps/motors, mixers.
Temperature range: -50 to +200°C (-58 to +392°F)
Pressure: 5 bar (0.5 MPa)
Max speed: 25 m/s
Dimensions: Shaft size range (metal cased): 6 - 330 mm; Bore size range (metal cased): 16 - 380 mm
Minimum tolerances: Shaft ±0.003"; Bore ±0.001"
Notes
Omniseal® 20 lip seals are specifically designed to enhance sealing performance for gases and abrasive media by increasing lip load, while providing additional runout capability compared with earlier Omniseal® lip-seal designs.
Technical specifications
Omniseal® 20 lip seals are modifications of the Omniseal® 10 seal design. This sealing solution provides extended service life and improved sealing of gases and abrasive media through a higher lip load, and offers increased runout capability. Operating speed and pressure limits follow those noted for the Omniseal® 10 lip seal.
Typical applications
- Gearboxes
- Submersible pumps and motors
- Mixers
Standard specifications
Materials: Metal outer case; high-performance polymer compounds; material selection performed by design engineers to meet application requirements.
Used in: Gearboxes, submersible pumps/motors, mixers.
Temperature range: -50 to +200°C (-58 to +392°F)
Pressure: 5 bar (0.5 MPa)
Max speed: 25 m/s
Dimensions: Shaft size range (metal cased): 6 - 330 mm; Bore size range (metal cased): 16 - 380 mm
Minimum tolerances: Shaft ±0.003"; Bore ±0.001"
Notes
Omniseal® 20 lip seals are specifically designed to enhance sealing performance for gases and abrasive media by increasing lip load, while providing additional runout capability compared with earlier Omniseal® lip-seal designs.
Technical specifications
- Brand: Omniseal®
- Product type: Rotary lip seal (high-lip-load shaft seal)
- Primary materials: Metal outer case and high-performance polymer compounds (material selected by design engineers)
- Typical applications: Gearboxes; submersible pumps/motors; mixers
- Temperature range: -50 to +200°C (-58 to +392°F)
- Maximum pressure: 5 bar (0.5 MPa)
- Maximum shaft speed: 25 m/s
- Shaft size range (metal cased): 6 - 330 mm
- Bore size range (metal cased): 16 - 380 mm
- Minimum tolerances: Shaft ±0.003"; Bore ±0.001"
