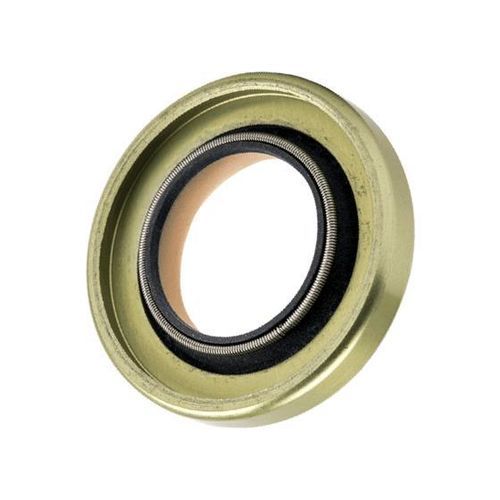

Lipped seal 60

roundmetalpolymer

Product overview
Omniseal® 60 lip seals feature spring loading to maintain sealing contact where shaft runout or bore/shaft misalignment occur. Designed for reliable sealing during long-term storage and dynamic rotary (including oscillating) applications.

Materials and design

• Metal outer case available for metal-cased variants
• High-performance proprietary polymer compounds for sealing lips
• Material selection by design engineers to meet specific application requirements

Applications
Rotary shaft sealing for dynamic conditions with shaft runout or bore/shaft misalignment; radial sealing solutions for rotary and oscillating motion.

Standard Specifications (table)
Materials: metal outer case (where specified); high-performance polymer sealing compounds.
Used in: situations with shaft runout or bore/shaft misalignment.
Temperature range: -50 to +200°C (-58 to +392°F).
Pressure: up to 29 psi (2 bar).
Max speed: 30 m/s.
Dimensions: Shaft size (metal-cased): 6–330 mm; Bore size (metal-cased): 16–380 mm.
Minimum tolerances: Shaft: ±0.003 in; Bore: ±0.001 in.

Typical features

• Spring-loaded lip design for improved sealing under runout/misalignment
• Positive sealing during long-term storage
• Available in metal-cased variants for larger diameters
• Engineered polymer compounds tailored to application needs

Technical characteristics / specifications

• Temperature range: -50 to +200°C (-58 to +392°F)
• Maximum recommended pressure: 29 psi (2 bar)
• Maximum speed: 30 m/s
• Shaft size range (metal-cased): 6–330 mm
• Bore size range (metal-cased): 16–380 mm
• Minimum tolerances: Shaft: ±0.003 in; Bore: ±0.001 in
• Materials: metal outer case (where specified) and high-performance proprietary polymer sealing compounds
• Primary application: rotary shaft sealing where shaft runout or bore/shaft misalignment occur
