LD-3 container AAY
LD-8LD-6LD-2

LD-3 container - AAY - Tianchang Cheers Metal Limited / Tianchang Avn Gse Nanjing Ltd. - LD-8 / LD-6 / LD-2

LD-3 container - AAY - Tianchang Cheers Metal Limited / Tianchang Avn Gse Nanjing Ltd. - LD-8 / LD-6 / LD-2 - image - 2

LD-3 container - AAY - Tianchang Cheers Metal Limited / Tianchang Avn Gse Nanjing Ltd. - LD-8 / LD-6 / LD-2 - image - 3

Add to favorites

Compare this product

Go to the Tianchang Cheers Metal Limited / Tianchang Avn Gse Nanjing Ltd. website for more information

Characteristics

Common designation

LD-3, LD-8, LD-6, LD-2

Other characteristics

aluminum

Domain

for air cargo, freight

Length

Max.: 2,235 mm
(88 in)

Min.: 2,235 mm
(88 in)

Width

Max.: 3,175 mm
(125 in)

Min.: 3,175 mm
(125 in)

Height

Max.: 2,083 mm
(82 in)

Min.: 2,083 mm
(82 in)

Volume

Max.: 11.9 m³
(420.245 ft³)

Min.: 11.9 m³
(420.245 ft³)

Maximum load

Max.: 6,033 kg
(13,300.5 lb)

Min.: 6,033 kg
(13,300.5 lb)

Description

Introduction
An aircraft container (Unit Load Device, ULD) is a purpose-built enclosure for the air transport and handling of palletized or containerized cargo. It is engineered to maximise cargo-hold utilization while meeting aerodynamic, restraint and safety requirements for commercial aviation operations.

Product description

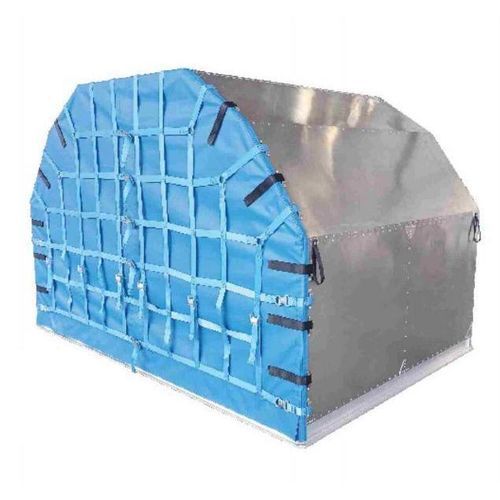

The AAY is a standard ULD with a base size of 88''×125'' and an overall height of 82''. It is configured for wide-body ULD positions and compatibility with pallet handling systems. Key metrics: tare weight 210 kg, max gross weight 6033 kg and internal volume 11.9 m3.

Variants

Type: DPE/LD2 — Brand: CHEERSMETAL — Max Capacity: 1225 kg — Dead Weight: 87 kg — Chassis Size (mm): 1194 (L) × 1534 (W) — Working Table Size (mm): 1562 (L) × 1534 (W) × 1626 (H)
Type: AKE/LD3/2K2C — Brand: CHEERSMETAL — Max Capacity: 1588 kg — Dead Weight: 100/90 kg — Chassis Size (mm): 1562 (L) × 1534 (W) — Working Table Size (mm): 2007 (L) × 1534 (W) × 1626 (H)
Type: ALF/LD6/2L1C — Brand: CHEERSMETAL — Max Capacity: 3175 kg — Dead Weight: 160 kg — Chassis Size (mm): 3175 (L) × 1534 (W) — Working Table Size (mm): 4064 (L) × 1534 (W) × 1626 (H)
Type: DQF/LD8 — Brand: CHEERSMETAL — Max Capacity: 2450 kg — Dead Weight: 127 kg — Chassis Size (mm): 2438 (L) × 1534 (W) — Working Table Size (mm): 3175 (L) × 1534 (W) × 1626 (H)

Technical specifications

Model: AAY
Brand: CHEERSMETAL
Base size: 88'' × 125''
Dimensions (L×W×H): 88'' × 125'' × 82'' (H)
Tare weight: 210 kg
Max gross weight: 6033 kg
Volume: 11.9 m3
Materials: Base sheet AL7021; Container frame AL7003; Container skin AL5754; Connor connection AL2A14; Container door: polyester fibre cloth
Certifications: CAAC CTSO - C90c; NAS3610 - 2A2C

Remarks
Brand indicated in the description: CHEERSMETAL
