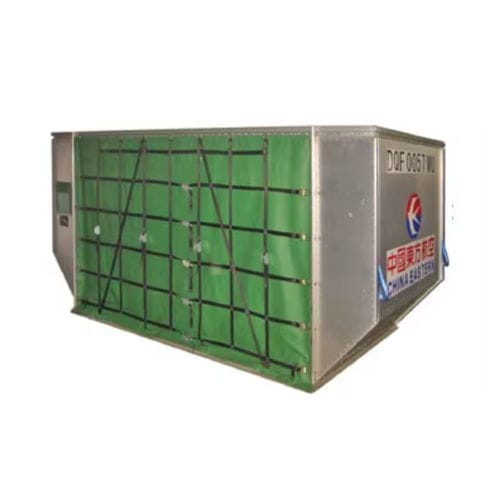

LD-2 container CM-AGE-AC
LD-3LD-6LD-8

LD-2 container - CM-AGE-AC - Tianchang Cheers Metal Limited / Tianchang Avn Gse Nanjing Ltd. - LD-3 / LD-6 / LD-8

LD-2 container - CM-AGE-AC - Tianchang Cheers Metal Limited / Tianchang Avn Gse Nanjing Ltd. - LD-3 / LD-6 / LD-8 - image - 2

LD-2 container - CM-AGE-AC - Tianchang Cheers Metal Limited / Tianchang Avn Gse Nanjing Ltd. - LD-3 / LD-6 / LD-8 - image - 3

LD-2 container - CM-AGE-AC - Tianchang Cheers Metal Limited / Tianchang Avn Gse Nanjing Ltd. - LD-3 / LD-6 / LD-8 - image - 4

LD-2 container - CM-AGE-AC - Tianchang Cheers Metal Limited / Tianchang Avn Gse Nanjing Ltd. - LD-3 / LD-6 / LD-8 - image - 5

LD-2 container - CM-AGE-AC - Tianchang Cheers Metal Limited / Tianchang Avn Gse Nanjing Ltd. - LD-3 / LD-6 / LD-8 - image - 6

Add to favorites

Compare this product

Go to the Tianchang Cheers Metal Limited / Tianchang Avn Gse Nanjing Ltd. website for more information

Characteristics

Common designation: LD-3, LD-2, LD-6, LD-8
Domain: for air cargo
Length: 1,562 mm, 2,007 mm, 3,175 mm, 4,064 mm
(61 in, 79 in, 125 in, 160 in)
Width: 1,534 mm
(60 in)
Height: 1,626 mm
(64 in)
Maximum load: 1,225 kg, 1,588 kg, 2,450 kg, 3,175 kg
(2,700.7 lb, 3,500.9 lb, 5,401.3 lb, 6,999.7 lb)

Description

Introduction
Aircraft Unit Load Devices (ULDs) such as LD3 containers are essential for efficient air cargo operations. They ensure compatibility with aircraft cargo systems, facilitate rapid handling, and support secure stowage and transport of palletized and containerized freight.

Product Brief

LD3 code (AKE configuration)
FAA and CAAC certification where applicable (TSO/PMA noted)
Typical tare weight: 90–100 kg
Gross weight capacity: 1588 kg
Internal volume (LD3 example): ~4.3 m³

Specification of Aviation Container
DPE/LD2 — Max Capacity: 1225 kg; Dead Weight: 87 kg; Chassis Size (mm): 1194(L) × 1534(W); Working Table Size (mm): 1562(L) × 1534(W) × 1626(H)
AKE/LD3/2K2C — Max Capacity: 1588 kg; Dead Weight: 100/90 kg; Chassis Size (mm): 1562(L) × 1534(W); Working Table Size (mm): 2007(L) × 1534(W) × 1626(H)
ALF/LD6/2L1C — Max Capacity: 3175 kg; Dead Weight: 160 kg; Chassis Size (mm): 3175(L) × 1534(W); Working Table Size (mm): 4064(L) × 1534(W) × 1626(H)
DQF/LD8 — Max Capacity: 2450 kg; Dead Weight: 127 kg; Chassis Size (mm): 2438(L) × 1534(W); Working Table Size (mm): 3175(L) × 1534(W) × 1626(H)

Product Description
CHEERSMETAL LD3 ULD containers are manufactured to meet standard aircraft loading systems and operational requirements. Available in multiple configurations (DPE/LD2, AKE/LD3/2K2C, ALF/LD6/2L1C, DQF/LD8) to match different fleet and cargo profiles. Materials and construction are selected to comply with airworthiness approvals; certification options include FAA TSO and CAAC where applicable.

Technical features / specifications

Model: CM-AGE-AC
Brand: CHEERSMETAL
Example (AKE/LD3/2K2C): Max Capacity 1588 kg; Dead Weight 90–100 kg; Internal volume ~4.3 m³
Example (DPE/LD2): Max Capacity 1225 kg; Dead Weight 87 kg
Example (ALF/LD6/2L1C): Max Capacity 3175 kg; Dead Weight 160 kg
Example (DQF/LD8): Max Capacity 2450 kg; Dead Weight 127 kg
Chassis and working table dimensions provided per type (see specifications block)
Certifications: FAA (TSO/PMA where applicable) and CAAC airworthiness approvals
