Aluminum container AKH
lower deckfor air cargo

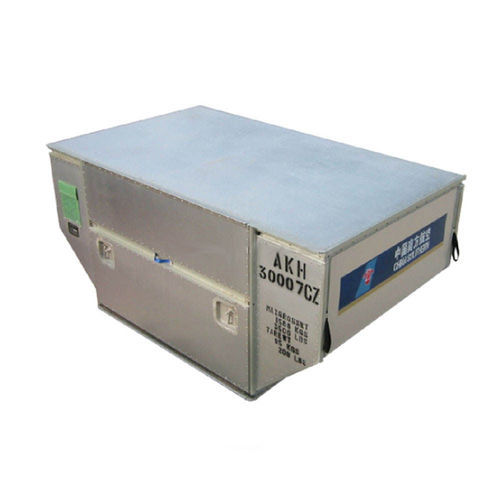

Aluminum container - AKH - Tianchang Cheers Metal Limited / Tianchang Avn Gse Nanjing Ltd. - lower deck / for air cargo

Aluminum container - AKH - Tianchang Cheers Metal Limited / Tianchang Avn Gse Nanjing Ltd. - lower deck / for air cargo - image - 2

Aluminum container - AKH - Tianchang Cheers Metal Limited / Tianchang Avn Gse Nanjing Ltd. - lower deck / for air cargo - image - 3

Add to favorites

Compare this product

Go to the Tianchang Cheers Metal Limited / Tianchang Avn Gse Nanjing Ltd. website for more information

Characteristics

Other characteristics

aluminum, lower deck

Domain

for air cargo

Length

Max.: 2,438 mm
(96 in)

Min.: 1,534 mm
(60 in)

Width

Max.: 1,562 mm
(61 in)

Min.: 1,534 mm
(60 in)

Height

Max.: 1,626 mm
(64 in)

Min.: 1,143 mm
(45 in)

Volume

Max.: 3.6 m³
(127.133 ft³)

Min.: 3.6 m³
(127.133 ft³)

Maximum load

Max.: 1,588 kg
(3,500.9 lb)

Min.: 1,588 kg
(3,500.9 lb)

Description

Introduction
ULD AKH is designed for narrow-body lower-deck cargo operations on Airbus A319/A320/A321 equipped with cargo loading systems. The unit is sized for constrained lower-deck geometry, supports standard handling equipment and is suitable for electronics, pharmaceuticals and irregularly shaped items. Constructed from aerospace-grade aluminum alloys with reinforced corner fittings and certified latches to meet airworthiness and ground handling requirements.

Product Description
AKH container (Unit Load Device)
Base size: 60.4'' × 61.5'' (approx. 1534 mm × 1562 mm)
Example external dimensions: 60.4'' × 96'' × 45'' (H)
Tare weight: typically 75 kg or 90 kg (variant dependent)
Maximum gross weight: 1588 kg
Volume: 3.6 m3
Materials: base sheet AL7021; container frame AL7003; container skin AL5754; corner connector AL2A14; container door: polyester fiber cloth (metal door option available)
Certifications: CAAC CTSO - C90c; NAS3610 - 2L2C

Notes on use and variants
Available variants include different heights and door/cover options (open-top, fabric door, metal door) to match cargo type and ground handling procedures. Typical working heights: ~1143 mm or ~1626 mm. Intended users: regional airlines, freight forwarders and ground handlers conducting loading/unloading in narrow-body lower-deck compartments.

Brand / Manufacturer information
Manufactured by Tianchang Cheers Metal (CHEERSMETAL), a producer of airport ground support equipment, airport logistics equipment and air containers. Some product lines hold civil aviation certifications and TSO/PMA approvals.

Technical specifications

Model: AKH
Base size: 60.4'' × 61.5'' (approx. 1534 mm × 1562 mm)
Example overall dimensions: 60.4'' × 96'' × 45'' (H)
Tare weight: 75 kg or 90 kg (variant dependent)
Max gross weight: 1588 kg
Volume: 3.6 m3
Base sheet material: AL7021
Container frame material: AL7003
Container skin material: AL5754
Corner connector material: AL2A14
Container door: polyester fiber cloth (alternatively metal door)
Certifications: CAAC CTSO - C90c; NAS3610 - 2L2C
