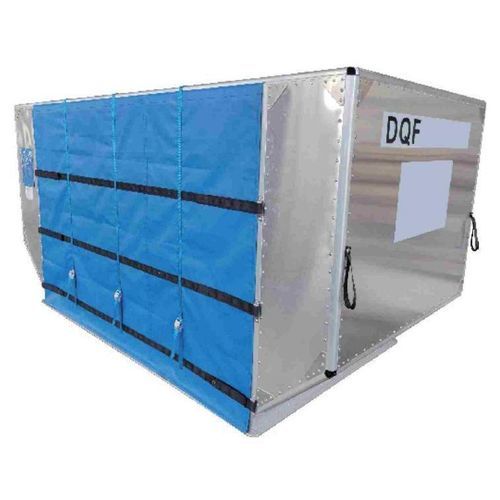

LD-2 container DQF

LD-3LD-6LD-8

Introduction Need a reliable container for both narrow and wide-body aircraft? The DQF aircraft cargo container is engineered for airlines and air cargo operators handling regional and long‑haul operations. It maximises permitted cargo volume and simplifies loading with a large access door. Key compatibility includes common types such as Boeing 757, Airbus A330 and Boeing 737. It meets industry air cargo standards (IATA referenced) and holds CAAC PMA certification.

Product Description DQF Container specifications and key dimensions:

• Base size: 2438 mm × 1534 mm (60.4'' × 96'')
• Overall dimensions (top length × width × height): 3175 mm × 1534 mm × 1626 mm (60.4'' × 125'' × 64'' H)
• Volume: 6.6 m³
• Door opening: 2250 mm × 1538 mm
• Tare weight: 110 kg
• Max gross weight / payload: 2449 kg
• Certifications: CAAC PMA; conforms to relevant IATA air cargo requirements

Variants & additional types mentioned

• Type: DPE / LD2 — (listed in gallery)
• Type: AKE / LD3 / 2K2C — Max Capacity: 1588 kg; Dead Weight: 100 / 90 kg; Chassis Size (mm): 1562 × 1534; Working Table Size (mm): 2007 × 1534 × 1626
• Type: ALF / LD6 / 2L1C — Max Capacity: 3175 kg; Dead Weight: 160 kg; Chassis Size (mm): 3175 × 1534; Working Table Size (mm): 4064 × 1534 × 1626
• Type: DQF / LD8 — Brand: CHEERSMETAL; Max Capacity: 2450 kg; Dead Weight: 127 kg; Chassis Size (mm): 2438 × 1534; Working Table Size (mm): 3175 × 1534 × 1626

Model DQF

Notes from descriptions Suitable for narrow- and wide-body aircraft; multiple image views and variant specifications are provided on the product page. The container design focuses on maximizing usable cargo volume while maintaining airworthiness compliance. CAAC PMA and IATA conformity are indicated for regulatory alignment.

Technical specifications

• Model: DQF
• Brand: CHEERSMETAL
• Base chassis (metric): 2438 mm × 1534 mm
• Top/working table (metric): 3175 mm × 1534 mm × 1626 mm (L × W × H)
• Imperial base size: 60.4'' × 96''
• Imperial overall: 60.4'' × 125'' × 64'' (H)
• Door size: 2250 mm × 1538 mm
• Tare / dead weight: 110 kg (variant weights noted where applicable)
• Max gross / capacity: 2449 kg (variants list other capacities)
• Volume: 6.6 m³
• Materials: Base sheet AL7021; Frame AL7003; Skin AL5754; Connector/connection AL2A14; Door: polyester fibre cloth
• Certification: CAAC PMA (and referenced IATA compliance)
