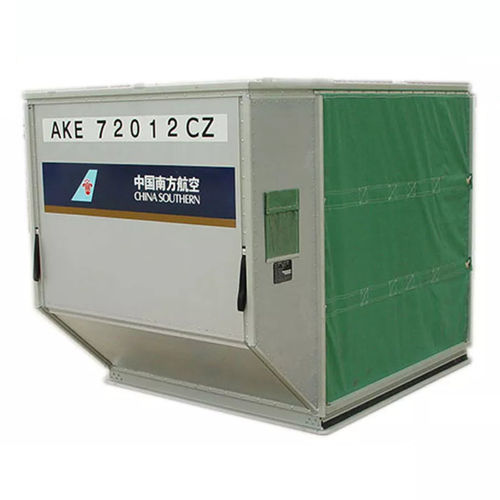

LD-2 container AKE
LD-3LD-6LD-8

LD-2 container - AKE - Tianchang Cheers Metal Limited / Tianchang Avn Gse Nanjing Ltd. - LD-3 / LD-6 / LD-8

LD-2 container - AKE - Tianchang Cheers Metal Limited / Tianchang Avn Gse Nanjing Ltd. - LD-3 / LD-6 / LD-8 - image - 2

LD-2 container - AKE - Tianchang Cheers Metal Limited / Tianchang Avn Gse Nanjing Ltd. - LD-3 / LD-6 / LD-8 - image - 3

LD-2 container - AKE - Tianchang Cheers Metal Limited / Tianchang Avn Gse Nanjing Ltd. - LD-3 / LD-6 / LD-8 - image - 4

LD-2 container - AKE - Tianchang Cheers Metal Limited / Tianchang Avn Gse Nanjing Ltd. - LD-3 / LD-6 / LD-8 - image - 5

LD-2 container - AKE - Tianchang Cheers Metal Limited / Tianchang Avn Gse Nanjing Ltd. - LD-3 / LD-6 / LD-8 - image - 6

Add to favorites

Compare this product

Go to the Tianchang Cheers Metal Limited / Tianchang Avn Gse Nanjing Ltd. website for more information

Characteristics

Common designation: LD-3, LD-2, LD-6, LD-8
Domain: for air cargo
Length: 1,562 mm, 2,007 mm, 3,175 mm, 4,064 mm
(61 in, 79 in, 125 in, 160 in)
Width: 1,534 mm
(60 in)
Height: 1,626 mm
(64 in)
Maximum load: 1,225 kg, 1,588 kg, 2,450 kg, 3,175 kg
(2,700.7 lb, 3,500.9 lb, 5,401.3 lb, 6,999.7 lb)

Description

Introduction
AKE containers are equipped with secure locking mechanisms to prevent cargo from shifting during transit. These mechanisms help maintain aircraft stability and protect cargo from damage.

Product Description
SPECIFICATION OF AVIATION CONTAINER

DPE/LD2
Max Capacity: 1225kg
Dead Weight: 87kg
Chassis Size (mm): 1194(L) × 1534(W)
Working Table Size (mm): 1562(L) × 1534(W) × 1626(H)

AKE/LD3/2K2C
Max Capacity: 1588kg
Dead Weight: 100/90kg
Chassis Size (mm): 1562(L) × 1534(W)
Working Table Size (mm): 2007(L) × 1534(W) × 1626(H)

ALF/LD6/2L1C
Max Capacity: 3175kg
Dead Weight: 160kg
Chassis Size (mm): 3175(L) × 1534(W)
Working Table Size (mm): 4064(L) × 1534(W) × 1626(H)

DQF/LD8
Max Capacity: 2450kg
Dead Weight: 127kg
Chassis Size (mm): 2438(L) × 1534(W)
Working Table Size (mm): 3175(L) × 1534(W) × 1626(H)

Brand
CHEERSMETAL

Technical specifications

Model: AKE
Brand: CHEERSMETAL
Secure locking mechanisms to prevent cargo shift during transit
Type DPE/LD2 — Max Capacity: 1225kg; Dead Weight: 87kg; Chassis Size: 1194(L)×1534(W); Working Table Size: 1562(L)×1534(W)×1626(H)
Type AKE/LD3/2K2C — Max Capacity: 1588kg; Dead Weight: 100/90kg; Chassis Size: 1562(L)×1534(W); Working Table Size: 2007(L)×1534(W)×1626(H)
Type ALF/LD6/2L1C — Max Capacity: 3175kg; Dead Weight: 160kg; Chassis Size: 3175(L)×1534(W); Working Table Size: 4064(L)×1534(W)×1626(H)
Type DQF/LD8 — Max Capacity: 2450kg; Dead Weight: 127kg; Chassis Size: 2438(L)×1534(W); Working Table Size: 3175(L)×1534(W)×1626(H)
