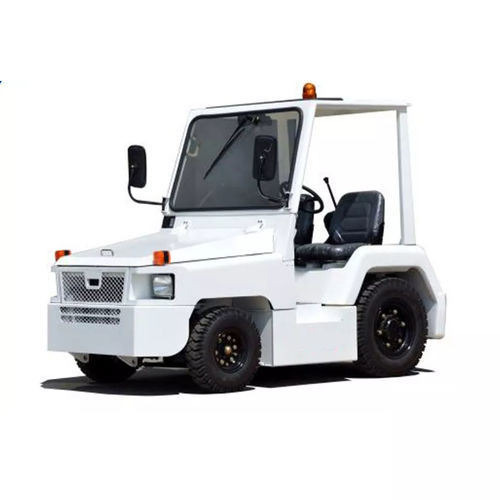

Towing tractor CM-EPTT-1

for aircraftgasolinediesel

Introduction
An airport baggage tractor is a specialized vehicle used at airports to transport and handle baggage carts, luggage containers and other equipment used for handling passenger and cargo baggage. These tractors enable efficient movement of baggage between terminals, aircraft and cargo areas.

Key features

• Power source: internal combustion engine (diesel or gasoline), electric motor or hybrid systems (various power options available).
• Operator controls: controls for precise maneuvering, steering and speed adjustments.
• Safety features: anti-skid systems, brakes and emergency stop mechanisms for safe operations.
• Operator arrangement: available without driving cabin, with a simple driving cabin or with a complete driving cabin.

Product variants / Options

• Without driving cabin (mainly for indoor use or under rain shed).
• With simple driving cabin: additional USD 750.
• With complete driving cabin: additional USD 1450.

Product Show
Images illustrate tractor versions for indoor use (no cabin), versions with a simple driving cabin and versions with a complete driving cabin. The complete cabin type is indicated as the most popular in the market.

Main Technical Specifications
Main Technical Specifications
Engine type: Diesel
Model No.: CM-EPTT-1 / CM-EPTT-2 / CM-EPTT-3
Max. Drawbar Pull (kN): 20 / 25 / 30
Max. towed weight (one trailer) (kg): 25000 / 32000 / 38000
Travel speed (Forward) (km/h): 25 / 25 / 25
Travel speed (Backward) (km/h): 22 / 22 / 22
Max. Gradeability (No Load) (%): 38 / 38 / 35

Dimensions (mm)
Overall Length (A): 3015 / 3015 / 3015
Overall Width (B): 1440 / 1440 / 1440
Overall Height (C): 1450 / 1450 / 1450
Wheel Base (D): 1620 / 1620 / 1620
Front Overhang (E): 635 / 635 / 635
Rear Overhang (With Coupler) (F): 760 / 760 / 760
Front Tread (G): 1250 / 1250 / 1250
Rear Tread (H): 1200 / 1200 / 1200
Min. Turning Radius / Outer (I): 3000 / 3000 / 3000
Floor Height (J): 425 / 425 / 425
Seat Height (K): 980 / 980 / 980
Center Height (Coupler) (L): 305/405 / 305/405 / 305/405
Min. Ground Clearance (M): 165 / 165 / 165

Tires & Weight
Front tire size: 6.50-10-10PR(I) (all models)
Rear tire size: 7.00-15-12PR(I) (models 1 & 2), 7.50-15-12PR(I) (model 3)
Truck weight (no load) (kg): 3450 / 3900 / 4400
Weight distribution (Front Axle kg): 1160 / 1120 / 1080
Weight distribution (Rear Axle kg): 2290 / 2780 / 3320

Powertrain, Steering & Brake
Engine displacement (cm3): 3331 (all models)
Rated output: 47 kW @ 2500 RPM
Rated torque: 200 N·m @ 1600 RPM
Transmission: Hydraulic Transmission
Steering: Integral Power Steering
Service Brake: Hydraulic Drum Brake
Parking Brake: Acting on driving wheel brake

Parameters summary & price notes
Three different models with different drawbar pull. Price notes in product content: model with 20 kN max drawbar pull is USD 950 cheaper; model with 30 kN max drawbar pull is USD 950 higher. (Specific main product price is not listed on the page.)

Optional Configuration

• Spare wheel with tire & rim: USD 235 / pc
• Air conditioning (cold & warm): USD 960 / pc
• Hot air blower: USD 480 / pc
• Custom-built traction pins (mainly for push): USD 195 / pc
• Small loading platform: USD 480 / pc
• Monitoring / recording system: USD 380 / pc
• Simple winter tool box: USD 190 / pc
• Loop rope: USD 50 / pc

Packing & Shipping
Loading quantity examples: 2 PCS per 20'GP container, 4 PCS per 40'GP container.

Company & Certificates
Manufacturer specializes in production of aircraft baggage tow tractors and other airport ground equipment. Company holds ISO9001 and an inspection certificate for airport tow tractors (inspection certificate for airport ground equipment).

FAQ (extract)

• Q: Are you trading company or manufacturer? A: Factory (manufacturer).
• Q: Delivery time? A: 5-10 days if in stock; 30-45 days if not in stock (depends on quantity).
• Q: Do you provide samples? A: Yes, samples can be offered; extra fee applies. Standard warranty: one year.
• Q: Terms of payment? A: 30% T/T in advance, balance before shipment.

Technical specifications

• Commercial model name: CM-AGE-TT
• Also referenced models / internal codes: CM-EPTT-1, CM-EPTT-2, CM-EPTT-3
• Brand: CHEERSMETAL
• Engine displacement: 3331 cm3; rated output 47 kW @ 2500 rpm; rated torque 200 N·m @ 1600 rpm
• Max drawbar pull options: 20 kN / 25 kN / 30 kN
• Max towed weight (one trailer): 25000 / 32000 / 38000 kg (depending on model)
• Dimensions (L×W×H): 3015 × 1440 × 1450 mm
• Wheelbase: 1620 mm; Min turning radius: 3000 mm
• Truck weight (no load): 3450 / 3900 / 4400 kg
• Transmission: Hydraulic; Steering: Integral power steering; Brakes: Hydraulic drum service brake; parking acts on driving wheel brake
• Tire sizes (front / rear): 6.50-10-10PR(I) / 7.00-15-12PR(I) or 7.50-15-12PR(I)
