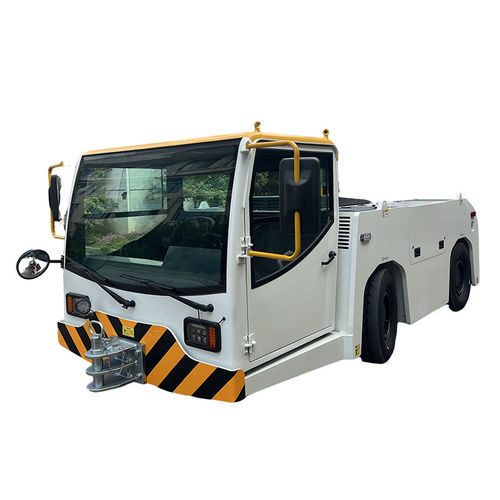

Towing tractor CMG7160

pushbackfor aircraftfor airliners

Product Overview
The conventional aircraft tow tractor CMG7160 is designed for pushback and ground towing of small to medium commercial aircraft. It features a compact low-profile layout, power-shift transmission and a spacious operator cabin suitable for apron operations and maintenance towing.

Brief description
The CMG7160 is a four-wheel-drive ground support vehicle with steerable front and rear wheels. Key performance figures include a maximum traction ≥120 kN, maximum travel speed ≥25 km/h (forward) and a permitted towing mass ≥150,000 kg. It is primarily intended for towing small and medium-sized aircraft on ramps and in maintenance areas.

Product specifics

• Model: CMG7160
• Brand: CheersMetal

Specification (table)
Self-weight: ≤15960 kg
Maximum traction force: ≥120 kN
Permitted towing mass: ≥150,000 kg
Maximum travel speed: forward 25 km/h; backward 18.7 km/h
Minimum ground clearance: ≈220 mm
Minimum turning diameter: 11,200 mm
Dimensions (L×W×H): ≤5328 mm × 2110 mm × 1960 mm
Wheelbase: 2200 mm
Tire: 8.25R15 front and rear single tire (reinforced); air pressure - 1000 kPa
Front/Rear wheel base: 1790/1790 mm
Approach angle / Departure angle: 15° / 15°
Maximum grade: 25 %
Braking distance: ≤3.4 m

Product Picture
Product images are available on the page showing the CMG7160 and its configurations for reference.

Technical specifications

• Model: CMG7160
• Brand: CheersMetal
• Self-weight: ≤15960 kg
• Maximum traction force: ≥120 kN
• Permitted towing mass: ≥150,000 kg
• Maximum travel speed: forward 25 km/h; backward 18.7 km/h
• Minimum ground clearance: ≈220 mm
• Minimum turning diameter: 11,200 mm
• Dimensions (L×W×H): ≤5328 mm × 2110 mm × 1960 mm
• Wheelbase: 2200 mm
• Tires: 8.25R15 reinforced; air pressure 1000 kPa
• Front/Rear wheel base: 1790/1790 mm
• Approach angle / Departure angle: 15° / 15°
• Maximum grade: 25 %
• Braking distance: ≤3.4 m
