Runway edge light HM-REL-12-X-XX-210

for airportLED

Product description

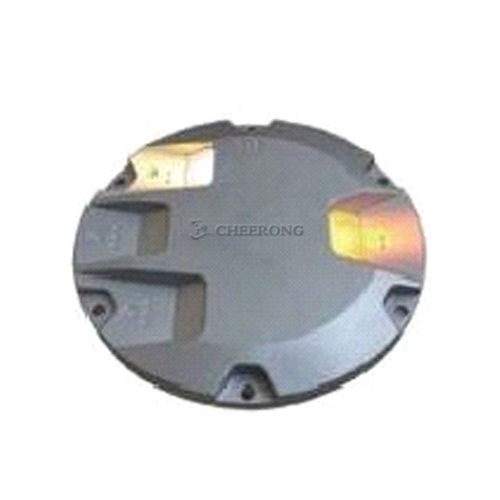

This circular runway edge light is designed for flush installation on airfield pavements and provides low-profile LED illumination with high mechanical and environmental resistance. The luminaire body is aluminum alloy with anti-corrosion surface treatment and a high-strength forged lamp cover; the optical prism is special tempered glass and fasteners are stainless steel. The unit meets IP68 protection and withstands 1380 kPa instantaneous hydraulic impact.

Key features

• Compliant with CAAC "Technical Requirements for Runway and Taxiway Aids" (AC-137-CA-2015-03-R1);
• LED technology for long life, energy saving and reduced maintenance;
• High-efficiency power factor correction to reduce interference to the power network;
• High-frequency switching constant-current LED driver;
• High-precision digital dimming that accurately simulates halogen dimming curve;
• Professional thermal management to lower operating temperature of LEDs and drivers;
• 125°C high-temperature, long-life electrolytic capacitors to improve driver stability;
• Low profile: LED protrusion height 6.3 mm; halogen equivalent 12 mm;
• High-strength, smooth lamp cover to protect aircraft tyres and provide load-bearing capacity;
• Modular, universal parts for easy replacement and maintenance.

Technical specifications

• Model: HM-REL-12-X-XX-210
• Brand: Cheerong
• Shape: Circular
• Body material: Aluminum alloy with anti-corrosion surface treatment
• Protection level: IP68 (withstands 1380 kPa instantaneous hydraulic impact)
• LED protrusion height from ground: 6.3 mm; Halogen protrusion height: 12 mm
• Optical prism: Special tempered glass
• Fasteners: Stainless steel
• LED driver: High-frequency switching constant-current circuit; 125°C high-temperature, long-life electrolytic capacitors
• Dimming: High-precision digital dimming to simulate halogen dimming curve
• Power: High-efficiency power factor correction circuit
• Design standard: Compliant with CAAC "Technical Requirements for Runway and Taxiway Aids" (AC-137-CA-2015-03-R1)
• Modular parts for easy replacement
