Taxiway light HM-TEL

for airportLEDhalogen

Product Description
The vertical taxiway edge light is a crucial lighting device in airport ground lighting systems. It is designed to mark taxiway edges, providing clear visual guidance for aircraft during taxiing to enhance ground movement safety.

Specification / Key Points

• The lamp design complies with CAAC 'Technical Requirements for Runway and Taxiway Aids' (AC-137-CA-2015-03-R1).
• LED technology for long life, energy saving and low maintenance.
• High-efficiency power factor correction reduces interference with the power network.
• High-frequency switching constant-current LED driver.
• High-precision digital dimming that simulates the halogen dimming curve.
• Professional thermal management to lower LED and driver temperatures and extend service life.
• 125°C high-temperature long-life electrolytic capacitors improve driver stability.
• Compact, aerodynamically efficient structure with low wind profile; wind resistance up to 240 km/h.
• Main body in aluminium alloy with anti-corrosion surface treatment.
• Overall lamp protection rated IP54 (numeric specification: IP65).
• Tempered glass lens resistant to thermal shock.
• Stainless steel fasteners.
• Modular, CAAC- and FAA-compliant replaceable parts.

Images

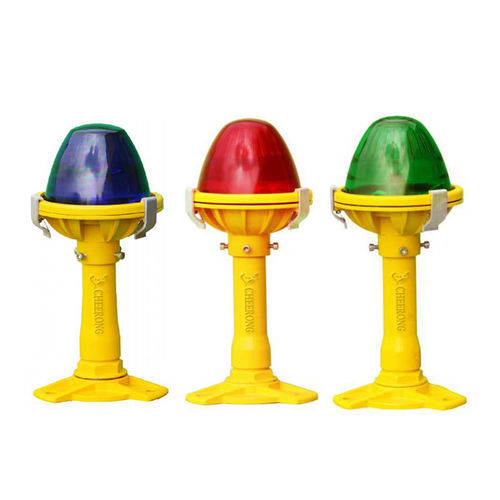

The product page includes multiple images showing different views and variants of the vertical taxiway edge light.

Basic info

• Model: HM-TEL
• Brand: Cheerong

Features (concise)

• LED-based: long life, low energy consumption, low maintenance.
• Power factor correction to limit power network interference.
• Digital dimming reproducing halogen dimming curve.
• Robust mechanical design: aluminium alloy body, stainless fasteners, tempered glass lens.
• Modular parts for easy replacement.

Technical specifications

• Power: 5W
• Power factor: 0.8 – 0.96
• Protection: IP65 (numeric) — overall lamp protection stated as IP54
• Brightness: > 2 cd
• Ambient temperature range: -55 to +55 °C
• Wind resistance: withstands wind speeds up to 240 km/h
• LED driver: high-frequency switching constant-current, uses 125°C electrolytic capacitors
• Thermal management: professional LED heat dissipation method
• Material: aluminium alloy main body with anti-corrosion surface treatment
• Lens: special tempered glass
• Fasteners: stainless steel
• Compliance: designed per CAAC technical requirements for runway and taxiway aids
