Airport lighting ARL

for runwayLEDmounting

Product overview
The Cheerong ARL airport lighting system provides a complete range of aeronautical ground lighting (AGL) for runway, taxiway and apron guidance. The family includes elevated vertical lights, inset/flush lights and PAPI/APAPI units designed for night and low-visibility airport operations.

Elevated vertical lights — range

• 1. Approach light — HM-APP-200
• 2. Runway threshold light — HM-RTL-200
• 3. Runway end light — HM-END-150
• 4. Runway guard light — HM-RGL-A(L)
• 5. Runway edge light — HM-REL-XX-200
• 6. Runway edge light — HM-REL-12-X-XX(L)
• 7. Runway edge light — HM-REL-12-X-XX-210
• 8. Taxiway edge light — HM-TEL(L)
• 9. T-shaped light — HM-TL-605-H10
• 10. Apron light — HM-600-H-r

Features (elevated vertical lights)

• Operating temperature: -40 °C to +55 °C
• Degree of protection: IP54
• Adjustable operating current: 2.8 A to 6.6 A

Inset lights — range

• 1. Runway centre line light — HM-RCL-08-XX(L)
• 2. Runway end light — HM-END-08-RB(L)
• 3. Rapid exit taxiway indicator lights — HM-RAP-08-YB(L)
• 4. Runway touchdown zone lights — HM-TZL-08-X-CB(L)
• 5. Taxiway centre line light (straight section) — HM-TCL-08(X)-XX(L)
• 6. Stopway / stop-bar light — HM-SBL-08(S)-RB(L)
• 7. Intermediate holding position light — HM-IHP-08(S)-YB(L)

Features (inset lights)

• Operating temperature: -40 °C to +55 °C
• Degree of protection: IP65
• Adjustable operating current: 2.8 A to 6.6 A
• Weight (example): 2.7 kg (light); 2.2 kg (base)

PAPI (Precision Approach Path Indicator)
The PAPI/APAPI units provide visual glide path guidance using red/white indications. Typical installations use four PAPI indicators per approach (two for APAPI). Each indicator unit comprises a light body assembly (cover, front glass, body, lens, color filter, lamp) and a bracket assembly for alignment and elevation adjustment.

Images

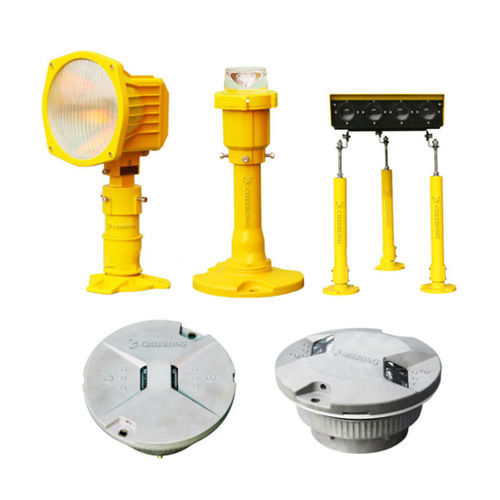

Product images illustrate elevated vertical lights, inset fixtures, PAPI units and installation views for reference.

Technical specifications

• Model: ARL
• Brand: Cheerong
• Product family: Elevated vertical lights, inset lights, PAPI/APAPI, taxiway and apron lights
• Operating temperature range: -40 °C to +55 °C
• Degree of protection: IP54 (elevated lights); IP65 (inset lights)
• Operating current: adjustable from 2.8 A to 6.6 A
• Weight example (inset light): 2.7 kg (light); 2.2 kg (base)
• Typical applications: runway approach, threshold and end, runway edge, taxiway edge and centreline, apron lighting, PAPI systems
